3D Measuring Arms Micron series

Ask for a price

Ask for a price 3D Measuring Arms Micron series

Specification

Micron 250 - 5 Axis Measuring volume: 250 x 250 x 250 mm
Volumetric accuracy: 4+L/50 µm
Repetability: 5 µm
Micron 400S - 5 Axis Measuring volume: 400 x 250 x 250 mm
Volumetric accuracy: 5+L/50 µm
Repetability: 7 µm
Power supply: 100-240 VAC
Protection class: IP 54

Downloads

Description

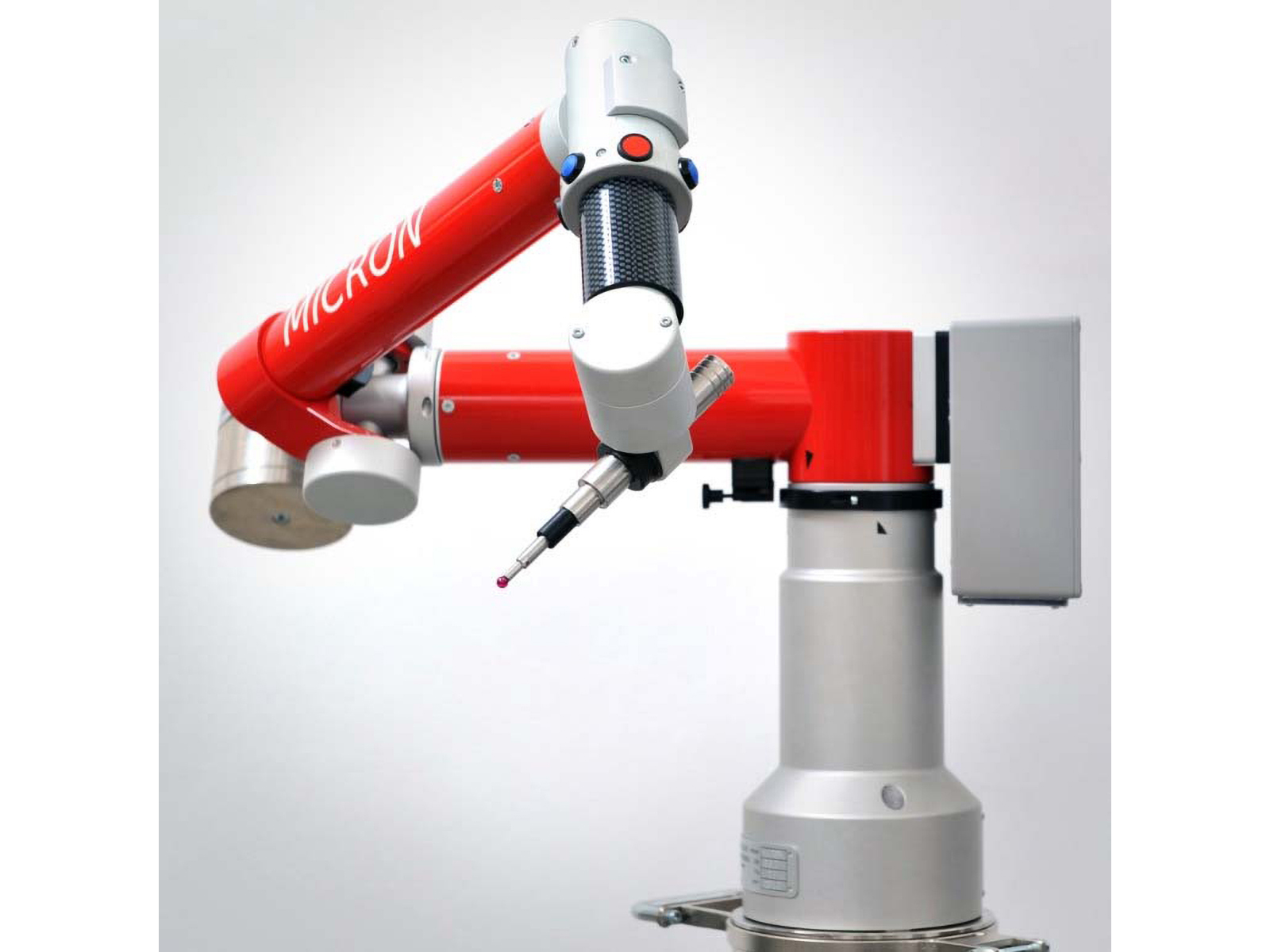

3D Measuring Arms Micron series – The most accurate portable arm ever made

Thanks to the unique counterbalancing system and the 5 axes configuration, the MICRON arm is the most accurate portable arm ever made. For touch probe inspections where the accuracy is fundamental, the MICRON arm represents the final solution.

ZERO – G COUNTERBALANCE

The mass-counterbalance of the MICRON arm is unique and works differently from any other portable arm you ever saw and ever used.The error brought by of the operator in keeping the intrument is reduced to zero, and to move the arm while measuring feels like just a 15 grams weight.

NEXT LEVEL ACCURACY

The MICRON arm is capable to reach a level of accuracy never saw on a portable arm. To get better than 0,01 mm of accuracy has never been so easy.

A COMPLETE SOLUTION

The solutions adopted to reach the accuracy of the MICRON arms are not limited to the arm itself, a complete selection of dedicated accessories is available to ensure the proper fixation of the intrument.
