3D Measuring Arms Space series
Ask for a priceSpecification
-
Space 1800 - 6 Axis
Measuring range: 1800 mm
Volumetric accuracy: 0.025 mm
Repetability: 0.018 mm -
Space 2500 - 6 Axis
Measuring range: 2500 mm
Volumetric accuracy: 0.036 mm
Repetability: 0.022 mm -
Space 3200 - 6 Axis
Measuring range: 3200 mm
Volumetric accuracy: 0.045 mm
Repetability: 0.032 mm - Power supply: 100-240 VAC
- Protection class: IP 54
Description

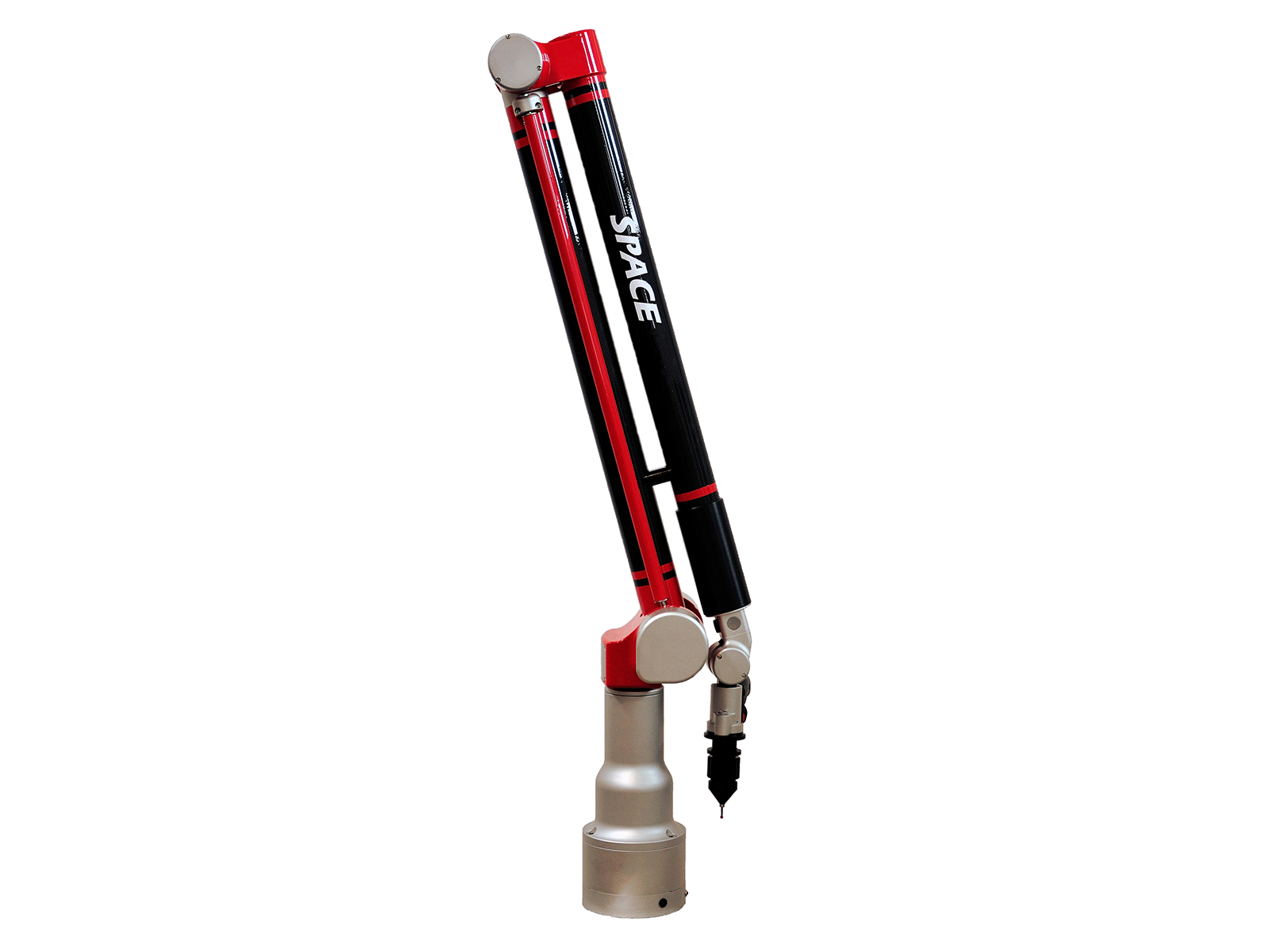

3D Measuring Arms Space series – essential in configuration, excellent in performance.
One of the most appreicated solutions, from 1.8 up to 3.2 m diameter. Since the invention of the Articulated Arms, the SPACE lines represent the brand all over the world, now renewed to give the best usage eperience.

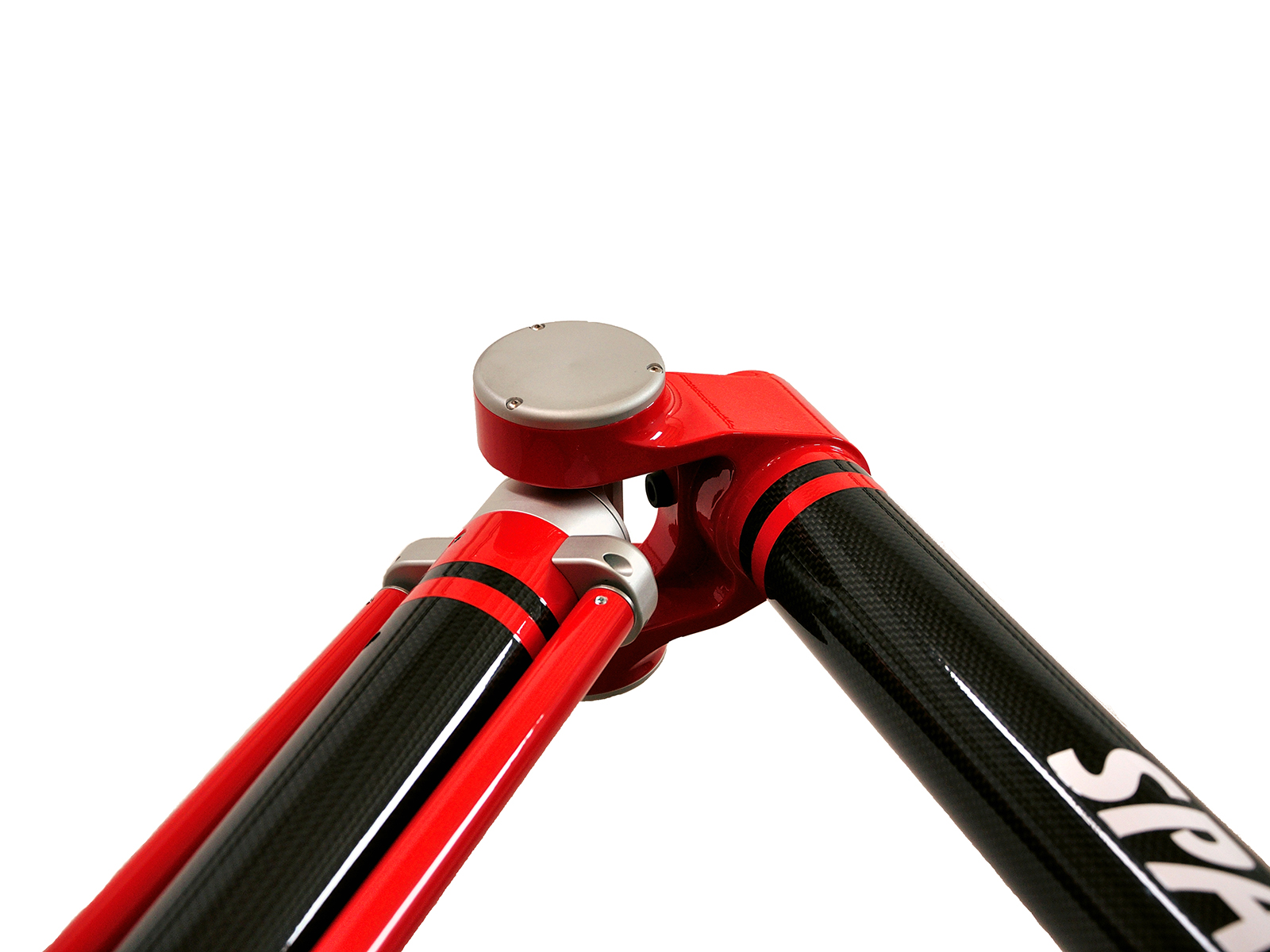

MECHANICALLY BALANCED
The SPACE line is balanced thanks to a couple of mechanical springs, a reliable solution that allow the user to move the instrument without loads. The result is an incredible accuracy, obtained under an very comfortable handling experience.
ESSENTIAL, WORKING GREAT
With dimensions from 1.8 up to 3.2 m diameters, the SPACE line covers the majority of the measuring ranges requested by the market. With the same compatibility of the SPACE Plus and EXPLORER lines, the SPACE represents the perfect compromise to enter in portable arms world: essential in configuration, but excellent in performance.
SAFE
The SPACE line is kept in its home position thanks to a magnetic brake, to prevent accidental falls when is moved on a tripod or in other similar situations.
