Measuring column DIATRON2200
Ask for a priceSpecification
- Measuring units: mm and inch
-
Resolution:
± 3.0 mm/0.1 µm
± 30 mm/1µm
-
Measurements:
Static
Dinamic: Min, Max, Average, Position tolerance
Multi-plane - Column measuring range: 3-color bar scale (red, green and yellow) with automatic color change according to selected tolerance limits.
- RS232 Interface: 9-pin plug SUB-D, standard hardware EIA RS232;
Downloads
Description

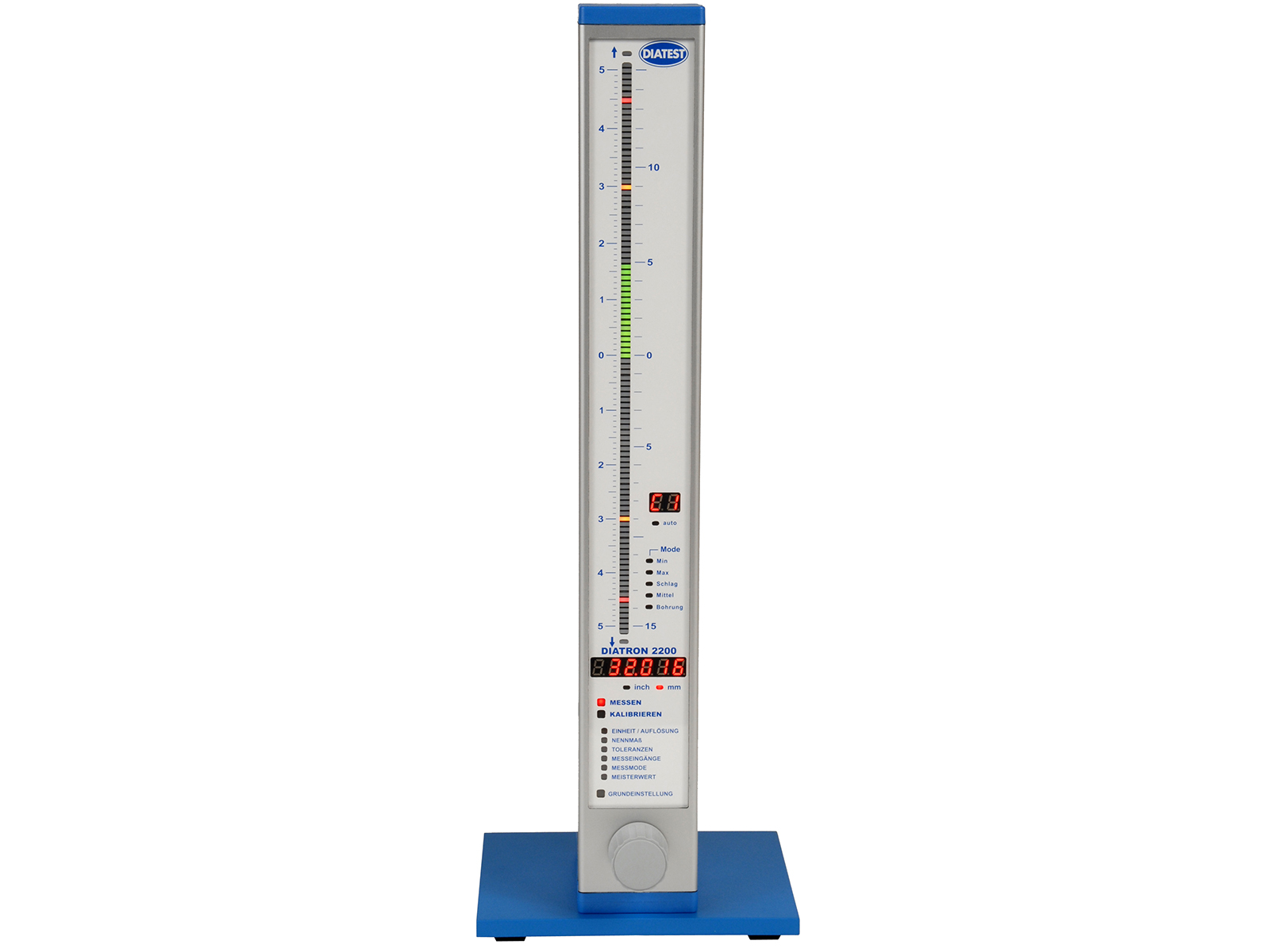

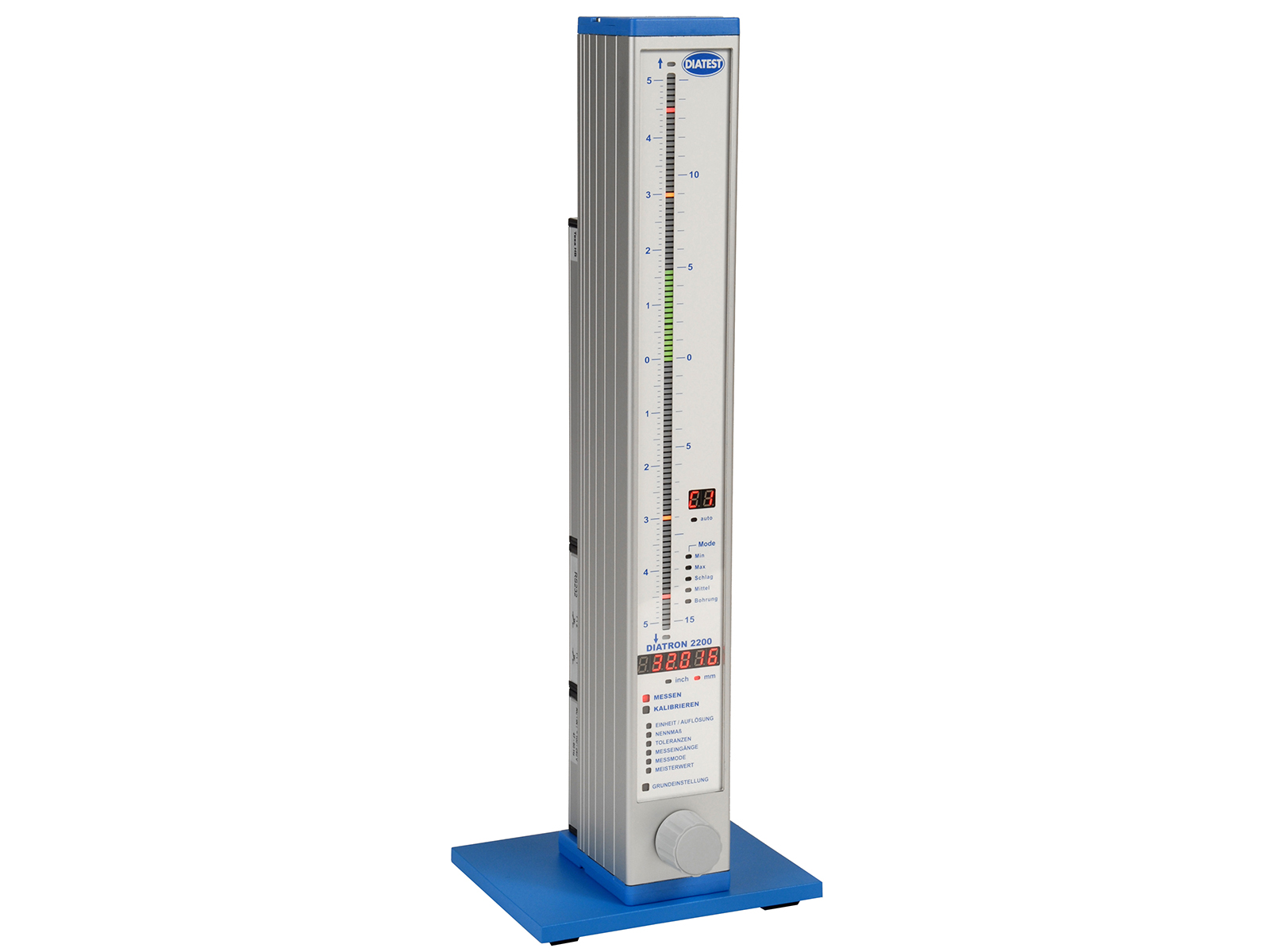

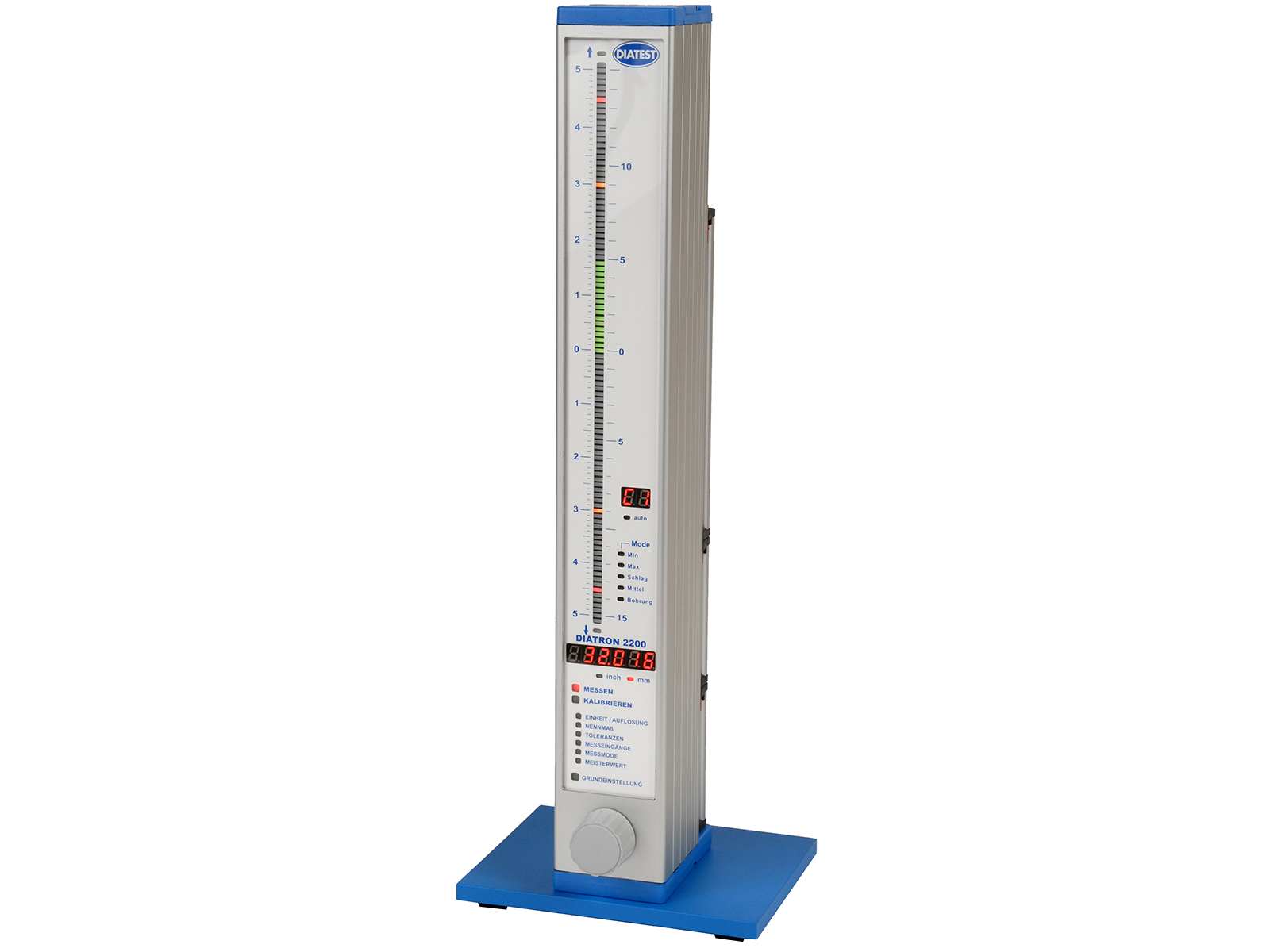

Measuring column DIATRON2200
The 3-colour bar display (red, green, yellow) has an automatic colour change depending on the set tolerance limits. A maximum of 4 tolerance limits can be programmed. The tolerance limits are shown as colored marks in the bar display. The measuring column has an automatic function which ensures automatic switching between the measuring points used.
The display informs the operator about the currently used measuring input (measuring instrument). Programming is carried out via the rotary pressure switch on the front panel or via software. Depending on the equipment, 1, 2, 4 or 8 inductive probes (HBT) or a radio module can be connected. Connection options for other measuring systems on request.
Process integration in DIAWIRELESS real radio network according to industry standard (optional). In buildings, distances of up to 20 m can be covered. High data security during transmission and reception.
