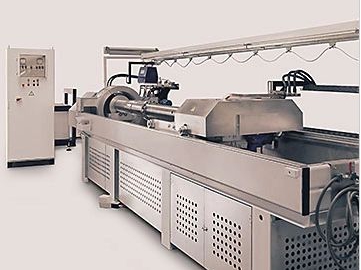

Crack Testing System, UF 2500 UNOFLUX SPE
Specification
- Workpiece length: max. 2500 [mm]
- Mains connection: 3x400 [V], 50 [Hz]
- Compressed air: 5 [bar]
- High current coil: 400/500 [mm]
Description
Crack Testing System, UF 2500 UNOFLUX SPE – for magnetic particle testing according to EN ISO 9934 and ASTME 1444-94a. A high-quality, high-performance crack testing machine for non-destructive magnetic particle testing. Our crack detection systems can be customized for your application.
Features
Longitudinal and transverse magnetization are only possible in separate and consecutive work steps.
Possible magnetization processes
- Current flow: Display of longitudinal cracks
- Auxiliary flooding: display of longitudinal cracks
- Coil magnetization: display of transverse cracks
Execution
- Separate high-current generator for feeding the two magnetizing circuits

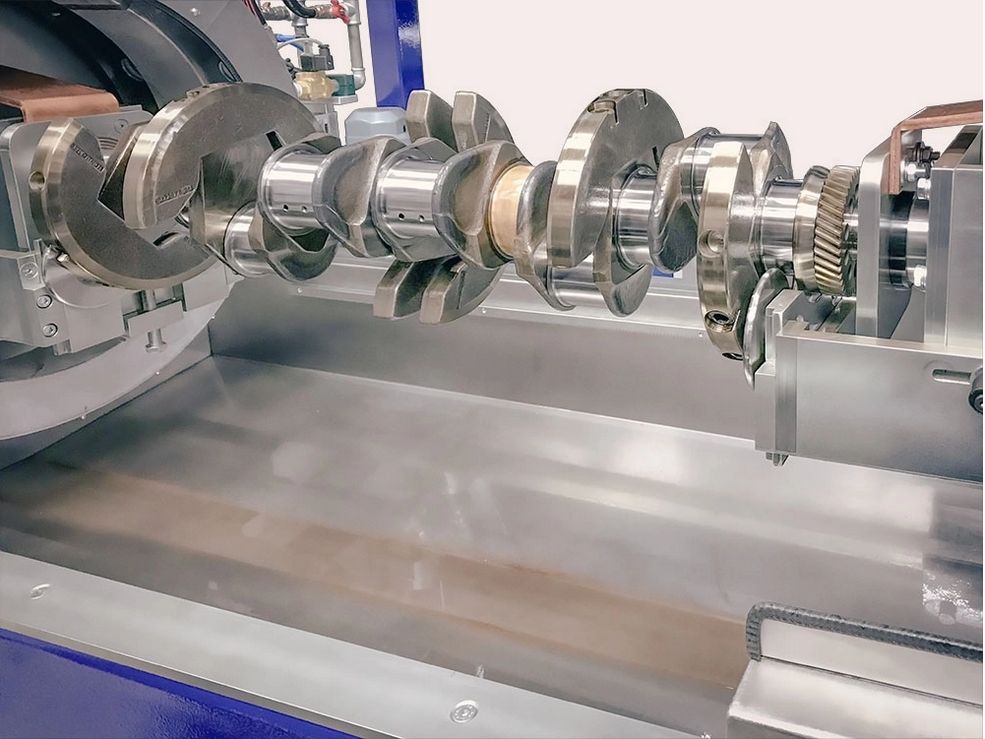

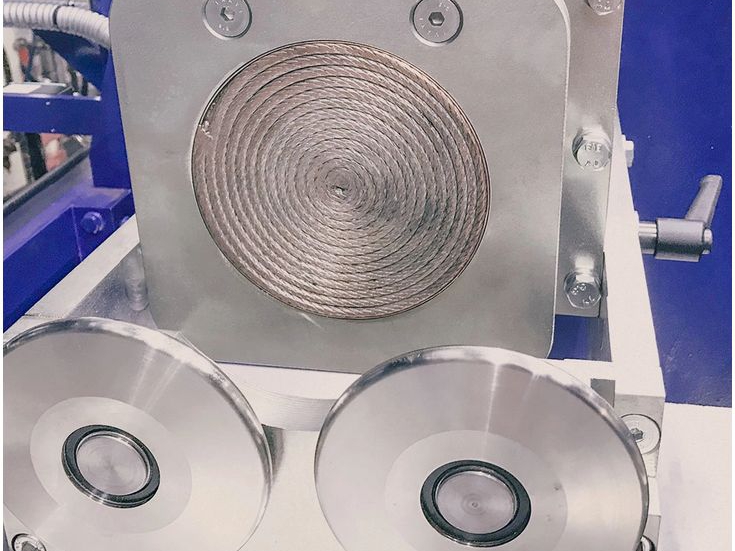

- Pneumatic clamping device in the left clamping pole
- right clamping pole can be moved and locked by hand
- High-current changeover switch with two functional positions:
- Workpiece clamped = current or auxiliary flow possible
- Workpiece unclamped = field or induction flow possible
- Mobile high-current coil D = 400 mm or 500 mm
