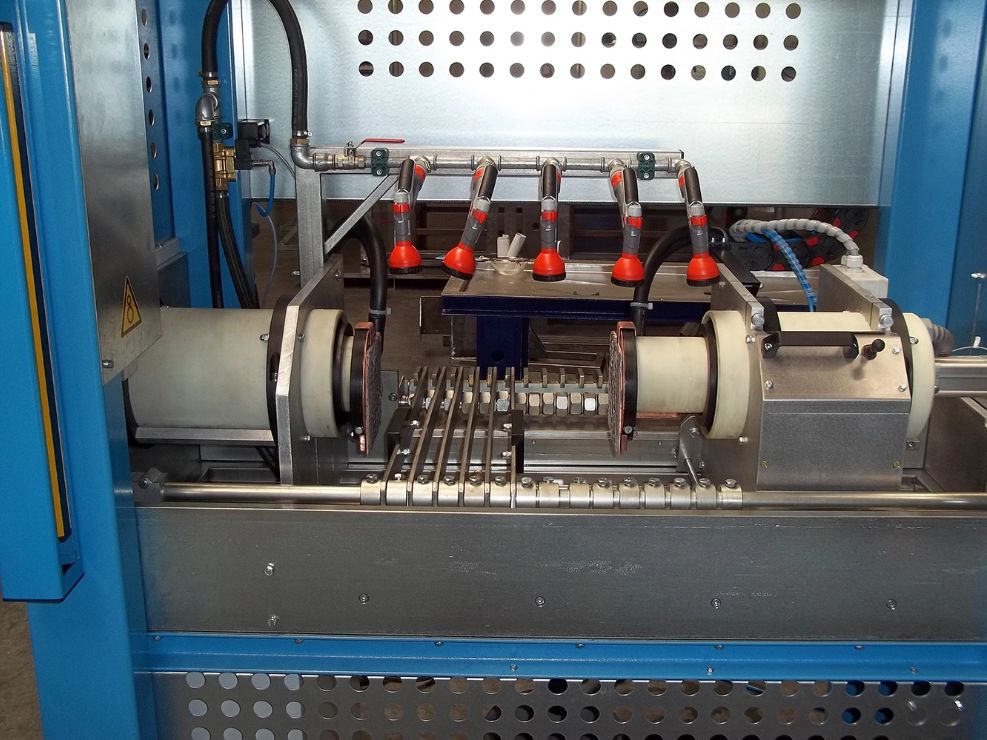

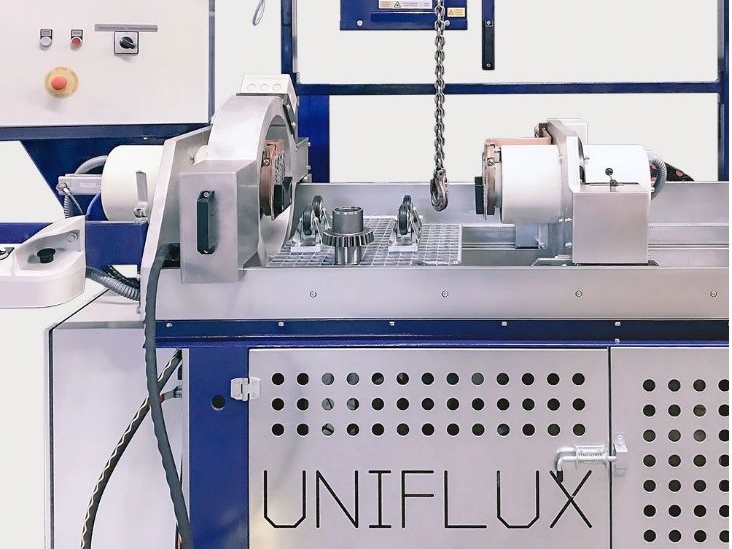

Crack Testing System, Uniflux UF 700 – 1000
Specification
- Workpiece length: max. 1000 [mm]
- Mains connections: 3x400 [V], 50 [Hz]
- Compressed air: 5 bar, ¼ Zoll
- Clamping force: 950 [N]
Description
Crack Testing System, Uniflux UF 700 – 1000 – for magnetic particle testing according to DIN 54131.
The UF 700 – 1000 crack detection system is equipped with two alternating current magnetization circuits. The two phase-shifted alternating currents generate a rotating magnetic field. Cracks are displayed in one operation in each direction. The UF 700 – UF 1000 crack detection machine can be used universally and is flexible in the design of current and field flow strength.
Possible magnetization processes
- Current flow: display of longitudinal cracks
- Yoke magnetization: display of transverse cracks
Execution
- Constant current control with effective value display
- Current flow control in both magnetizing circuits
- Automatic function sequence
