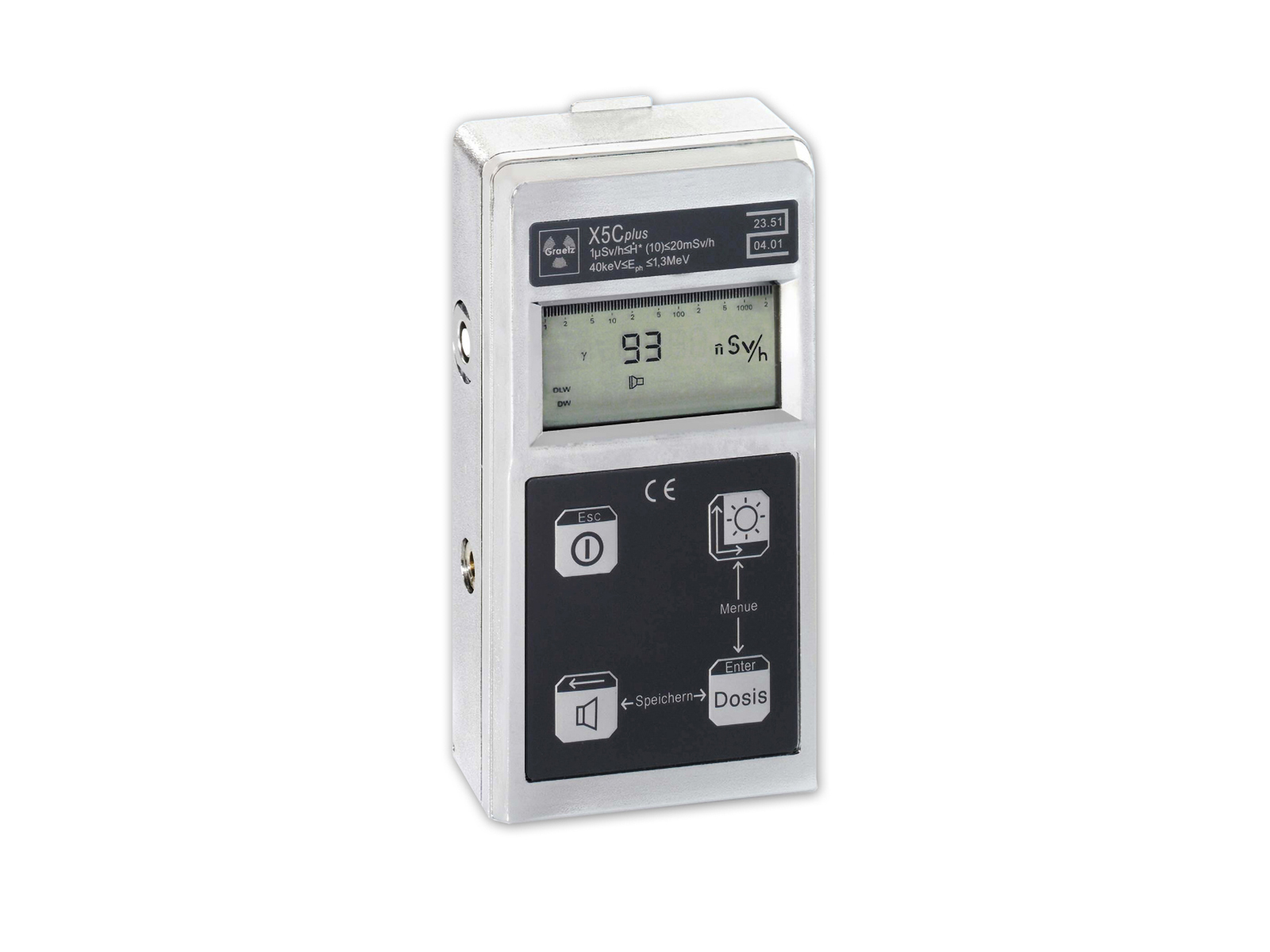

Dose Rate Meter X5C Ex (ATEX)
Ask for a price
Ask for a price
Dose Rate Meter X5C Ex (ATEX)
Specification
-
Measuring ranges:
Dose: 0.5 µSv − 10 Sv
Dose rate: 1.0 µSv/h − 20 mSv/h - Radiation type: Gamma and RX
- Energy range: 40 keV – 1.3 MeV
- Dose alarm tresholds: 4 , free programmable over the whole measuring range
- Dose rate alarm tresholds: 4, free programmable over the whole measuring range
Downloads
Description
Dose Rate Meter X5C Ex (ATEX) – for your personal radiation protection and the use in potentially explosive atmospheres.
Features:
- PTB-approved dose rate meter for measuring gamma radiation and X-rays for the ambient dose rate equivalent * (10)
- detector: energy compensated GM-tube
- large, digital indication of measured values on LC-display (illuminable)
- selectable dose rate or dose indication with integration time
- additional quasi-analogue indication of dose rate (3.5 decades, logarithmic bargraph)
- indication of peak and average value of dose rate
- 4 free programmable dose and dose rate alarm thresholds
- automatic or manual storage of measured dose rate values together with date and time
- evaluation / indication of residual time for staying in the current radiation field with regard to maximum allowed dose
- switchable acoustic single-pulse indication
- clear menu-driven user navigation for easy operation, partly secured by password
- storage of set parameters also when device is switched off
