Conventional Ultrasonic Flaw Detector SONOSCREEN ST10
Ask for a price
Ask for a price
Conventional Ultrasonic Flaw Detector SONOSCREEN ST10
Specification
- Measuring range: 0.5 ... 20000 mm in steel
- Resolution: 0.01 mm
- Measuring methods: Pulse-Echo, Transmit-Receive, Through-Transmission
- Display: 8" colour display,16:9 format; WVGA 800 px x 480 px
- Dimensiuni: 310 mm x 206 mm x 77 mm
- Greutate: 3 kg
Description
Conventional Ultrasonic Flaw Detector SONOSCREEN ST10

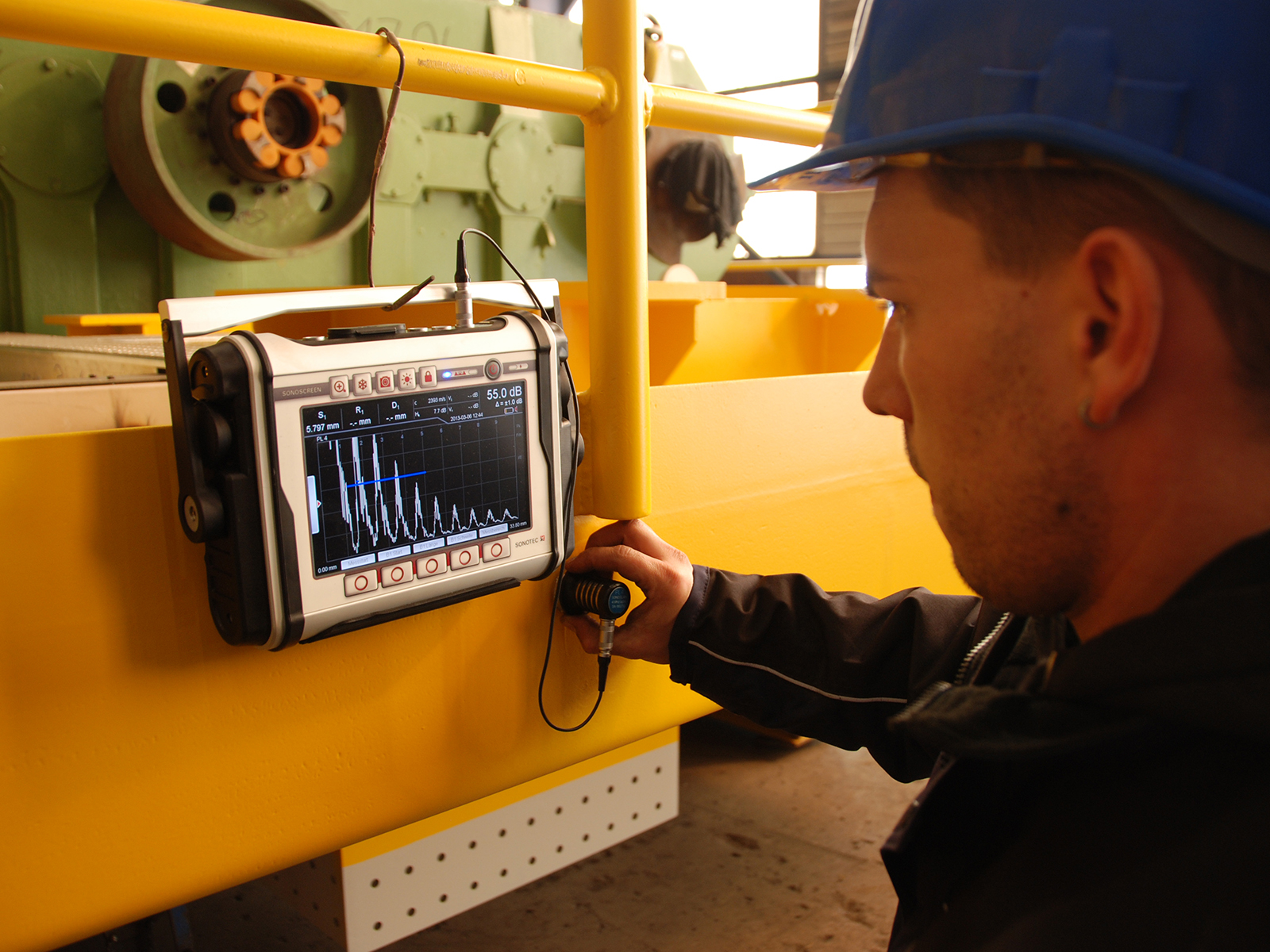

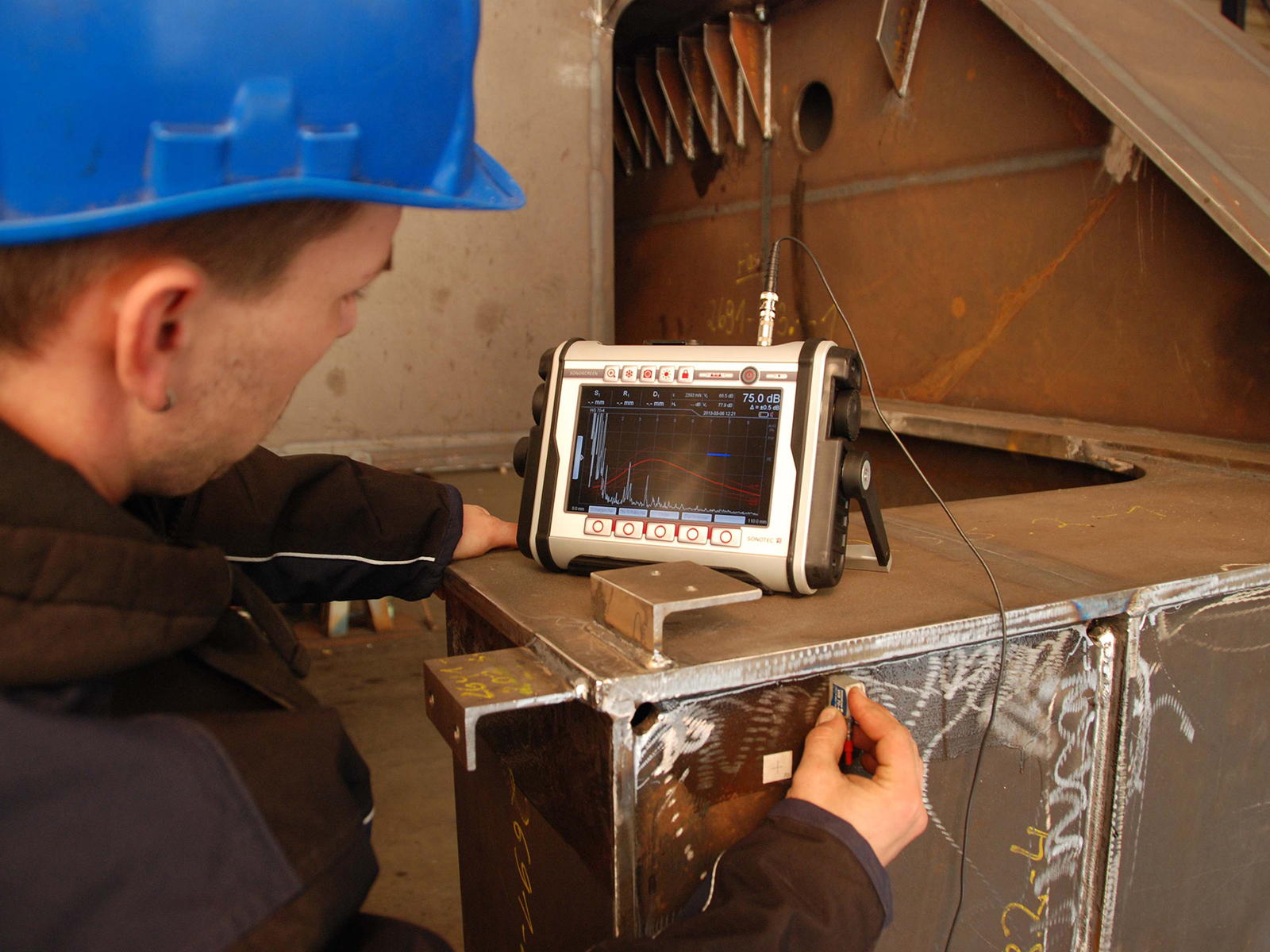

The SONOSCREEN ST10 is ideally suited for all common ultrasonic testing applications. From weld seam inspections and wall thickness measurements to the detection of imperfections such as invisible cracks, inclusions, and blowholes in metals, plastics, ceramics, and composites.”. Even in harsh testing environments, our robust flaw detector works reliably at extreme temperatures from -20 °C to 60 °C.
Advantages at Glance
- Powerful rectangular transmitter

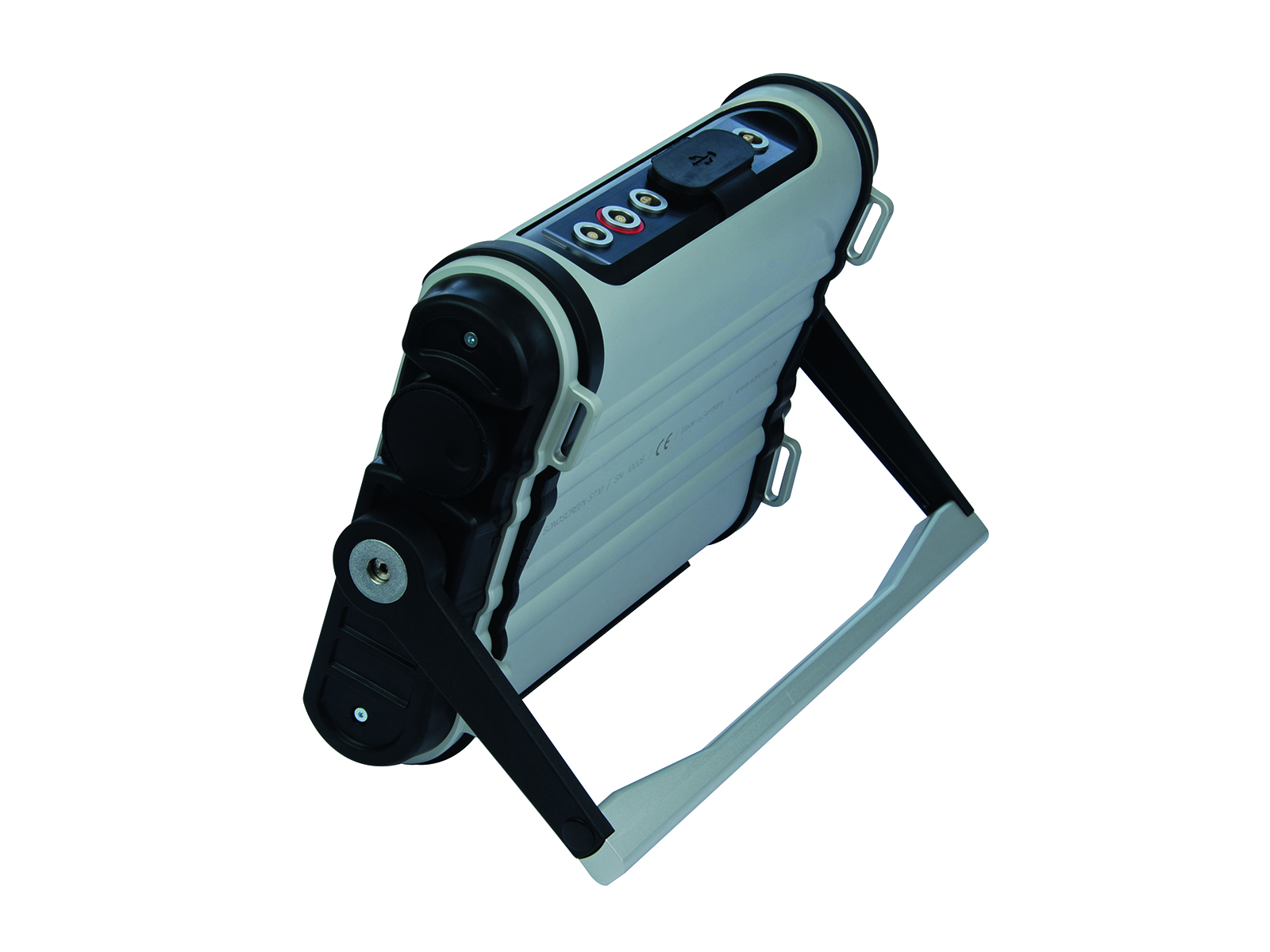

- Robust aluminium housing, protection class IP66

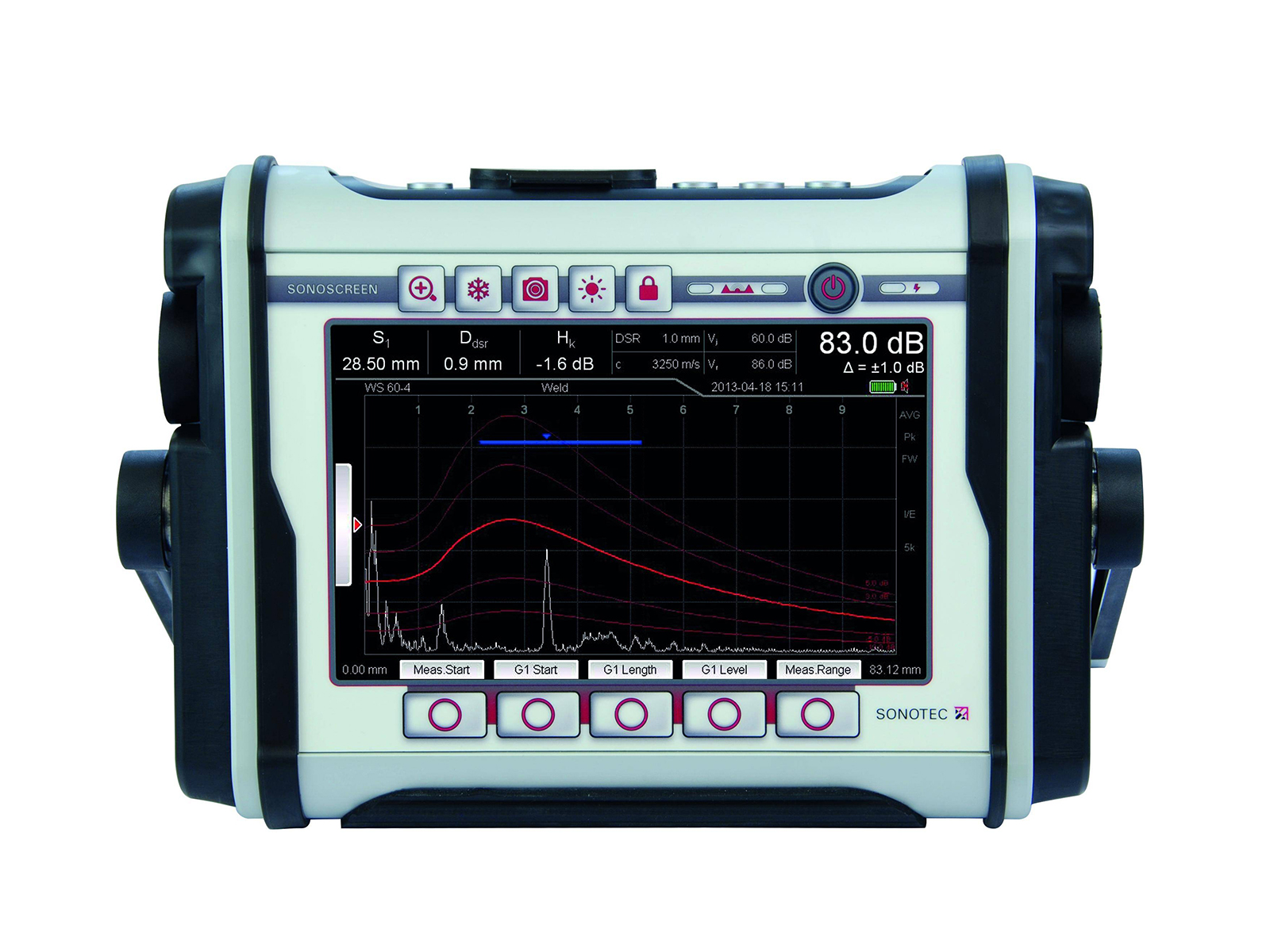

- High-resolution 8″ display in 16:9 format
- 2 GB internal memory for up to 60,000 A-scans including device setup
- Resolution of 5 ns over the entire measuring range
