Coating Thickness Gauge QNix 5500
Ask for a priceSpecification
-
Measuring rang:e
Fe: 0 - 5000 µm
NFe: 0 - 5000 µm -
Resolution:
1 μm Fe
2 μm NFe - Min. surface reqd. for measuring: Ø 14.5 mm
- Working principle: magnetic: magnetic field amendment/ hall-effect Fe Eddy current - NFe
- Probe type: Integrated or with cable
- Power supply: 2 x 1.5 V AA batteries
- Weight: 132 g, incl. batteries
Description
Coating Thickness Gauge QNix 5500

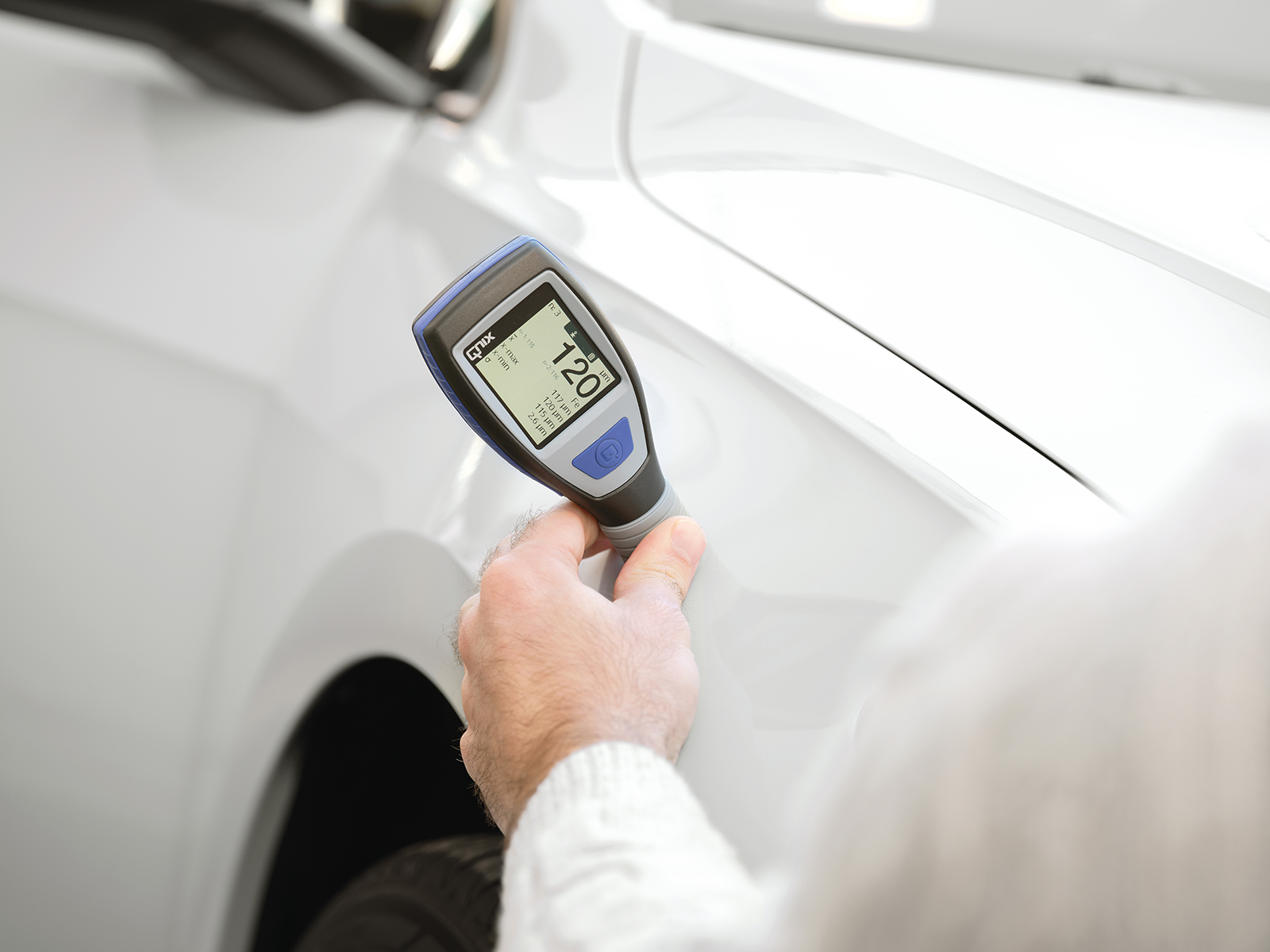

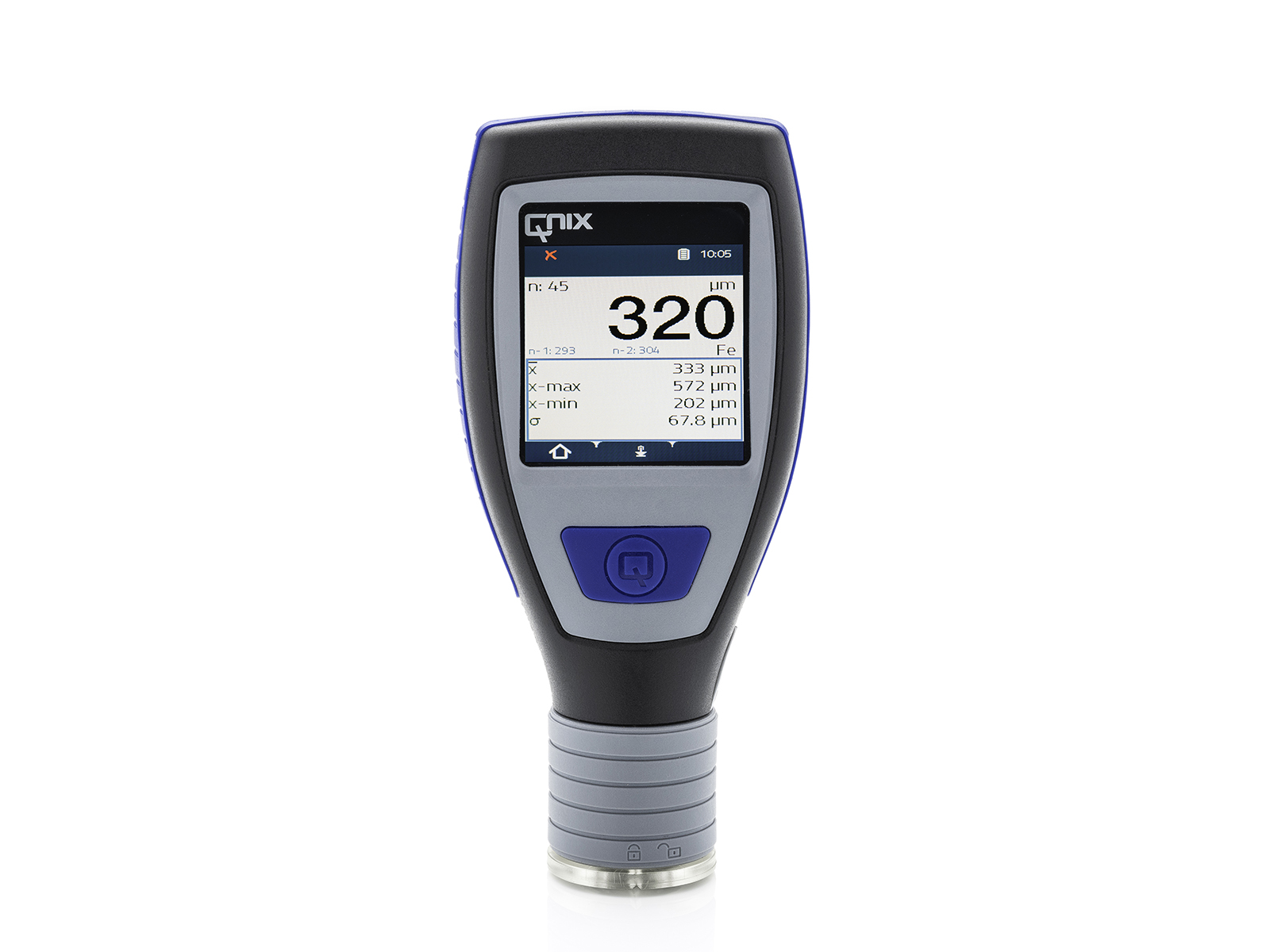

Whether in industrial coating or job coating, in heavy corrosion protection or in vehicle evaluation by automotive experts and retailers: The QNix® 5500 supports you optimally in checking your coatings quickly without extensive set up of the gauge – switch it on, place on surface, and read the measurement. The bright, 2” large colour LCD with automatic flip display makes it easier to read the values in any position – even in dim conditions like in dark areas inside tanks or bridges or when working in bright sunlight. The gauge displays all necessary statistical information of your current measurement sequence like mean value, maximum and minimum value and standard deviation.

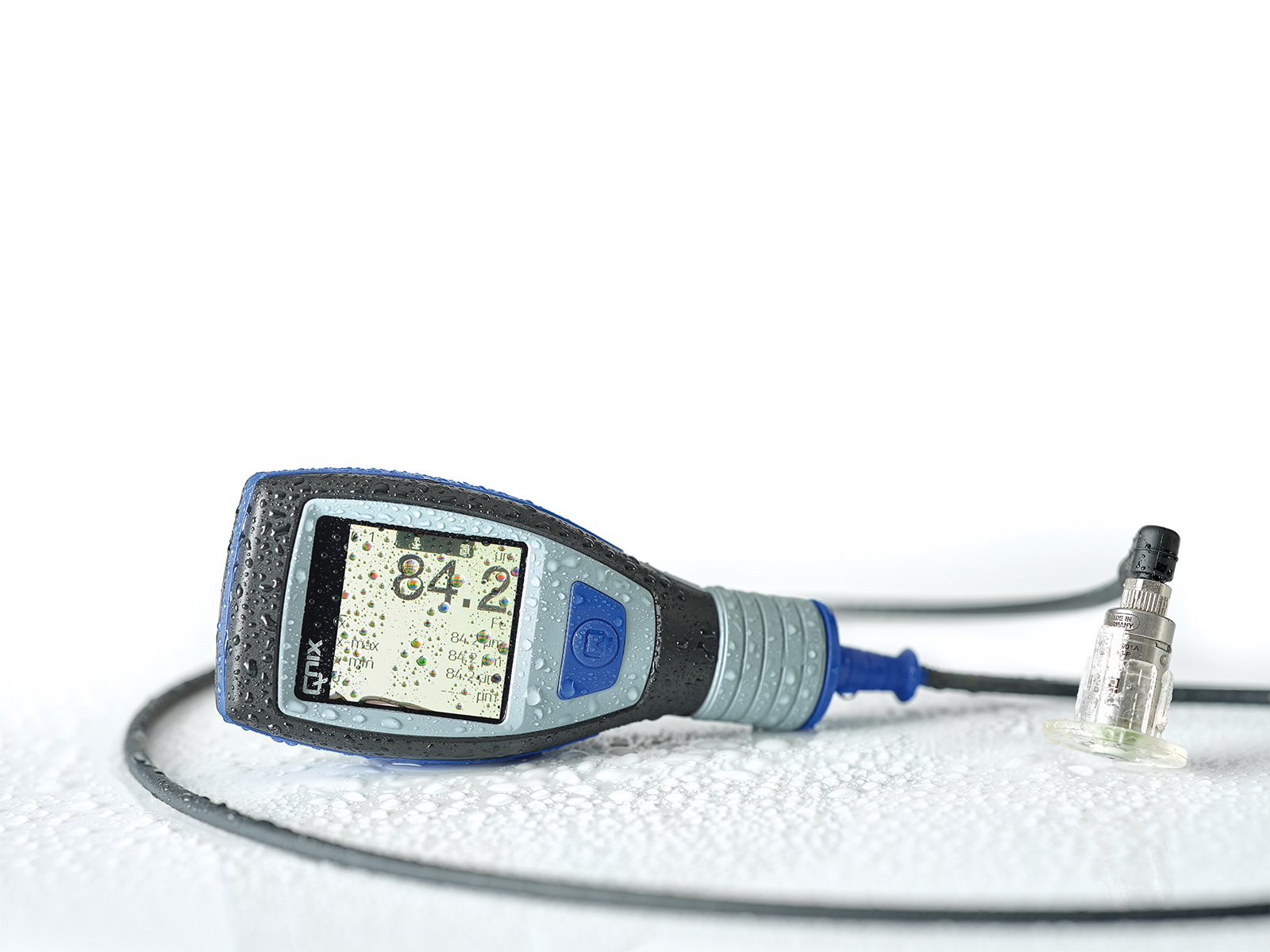

The large foot and low centre of gravity ensures correct placement and avoids incorrect measurements. To measure small or angled areas simply use the probe cable and transform the QNix® 5500 into a cable device within a few
seconds. The angled cable connection facilitates working even in small spaces. The one button operation allows you fast zero adjustment on your base metal or on the supplied zero plates.

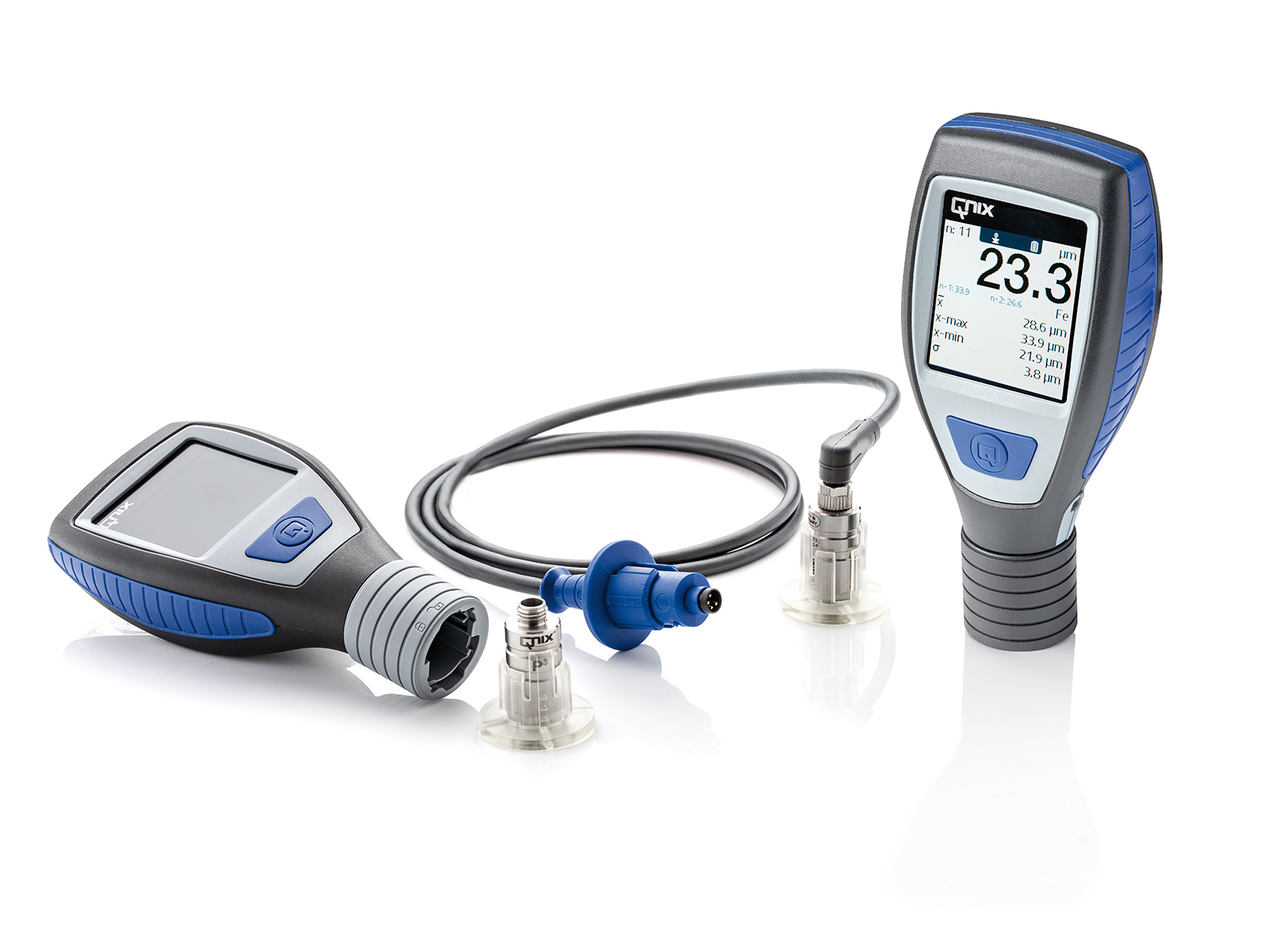

For every application, there is the right probe, which is precise and true over the entire measuring range varying from 1,25 mm and 3 mm up to 5 mm, available as Fe-, NFe- or dual probes.
