Magnetic Field Meter MP-1000
Ask for a priceSpecification
-
Measuring ranges:
CC: 0-20000 A/cm (Gauss/Oe)
CA: 20-20000 A/cm (Gauss/Oe)
Automatic selection of the range - Measuring units: A/cm - Gauss(Oe) (selectable)
-
Resolution:
0-100 A/cm (Gauss): 0.1 A/cm (G)
> 100 A/cm (Gauss): 1 A/cm (G)
> 10000 A/cm (Gauss): 0.1 kA/cm (kG) - Accuracy in homogeneous field: CC/CA - 0-2000 kA/m + 2%
- Frquency range CA (AC=RMS) 10 Hz – 5 kHz
- Weight: 137 g with batteries
Downloads
Description

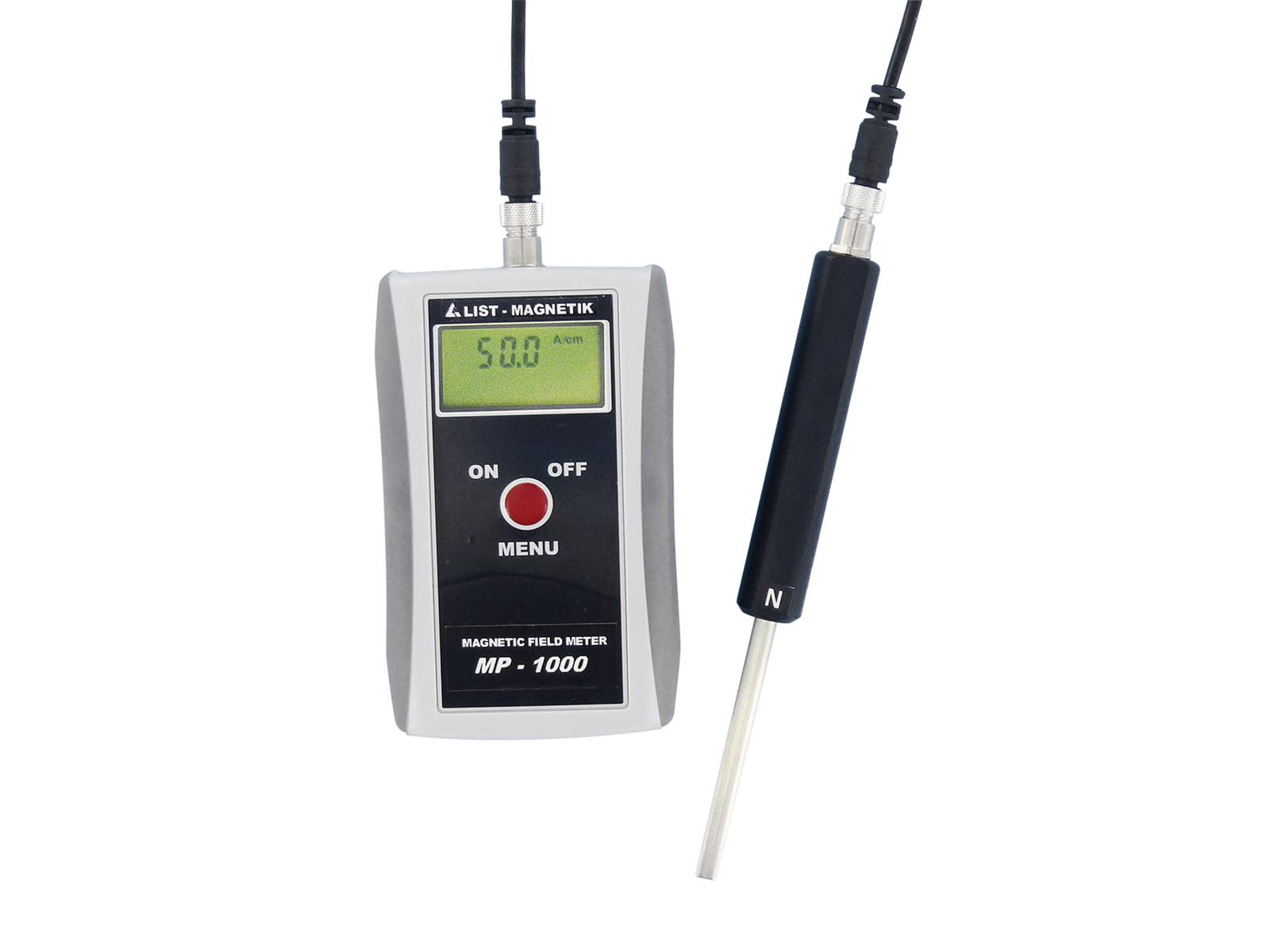

Magnetic Field Meter MP-1000
The List-Magnetik MP-1000 magnetic field meter is a handy universal device with externally connectable tangential and axial field probes for the precise measurement of all types of magnetic fields: steady DC fields, alternating AC fields and pulsed fields. With the easy one-button operation, magnetic field strength can be measured from the weak earth magnetic field up to strong fields of 20,000 A/cm, switchable in Gauss/Oersted.
A separate built-in micro controller in the MP-1000‘s measuring probes digitizes and linearizes the analog measurement signals of the hall sensor into the probe. This gives an extremely trouble-free and precise measurement, especially at high magnetic field strengths. The probe cable is pluggable at both ends, at the display unit and the probe, which is particularly service-friendly, as the cable can simply be replaced if it becomes faulty. Applications of the MP-1000 are the test for residual magnetism, the measurement of magnetic fields of all kinds, as well as the localization of stray fields for crack detection.
