Go-Scan C-View
Specification
- Detector technology: CMOS
- Pixel pitch: 99 [µm]
- Active resolution: 1032 x 1548 [pxl]
- Energy range: 40 to ~ 70 [kV]
- X-ray max power output: 12 [W]
- Battery performance: 2 [h]
- Weight: 6.5 [kg]
Downloads
Description

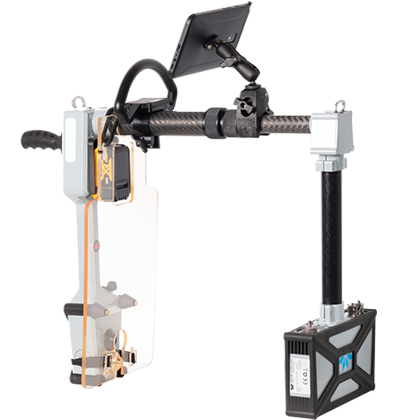

Go-Scan C-View – is a light weight ruggedized real time X-ray imaging system specifically designed for hand-held inspection such, among other, Corrosion Under Insulation (CUI) inspection. It includes a high speed and high resolution CMOS imager and a battery-operated 70kV x-ray tube designed for portable field operation. The video imaging system captures images and displays them on a hand held display in real-time.
