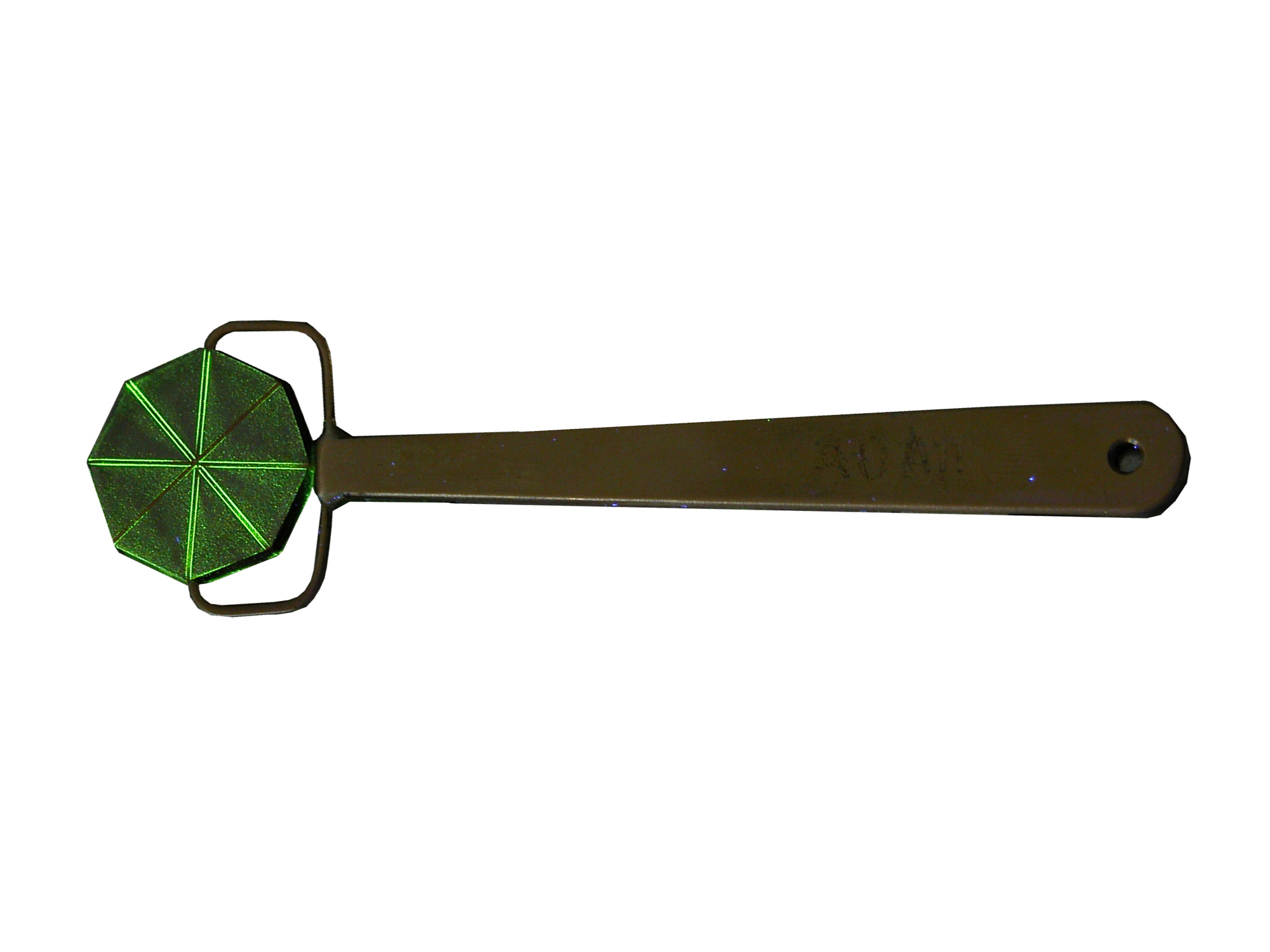

Magnetic field indicator D250
Ask for a price
Ask for a price
Magnetic field indicator D250
Specification
- Sample diameter: 27 mm
- Sample height: 4 mm
- Holder length: 100 mm
Downloads
Description
Magnetic field indicator D250 – is designed in accordance with the following specification methods of non destructive testing :
- MIL-STD-271 E, § 4.3.2.5.5, figure 8
- NAVSHIPS 250-1500-1, § 12.4.1.5, figure 12 – 17
- ASME, section V, Art. 25, SA-275, figure 8
The sample is used for localization of magnetic fields and their directions during performance of magnetic particle testing.
