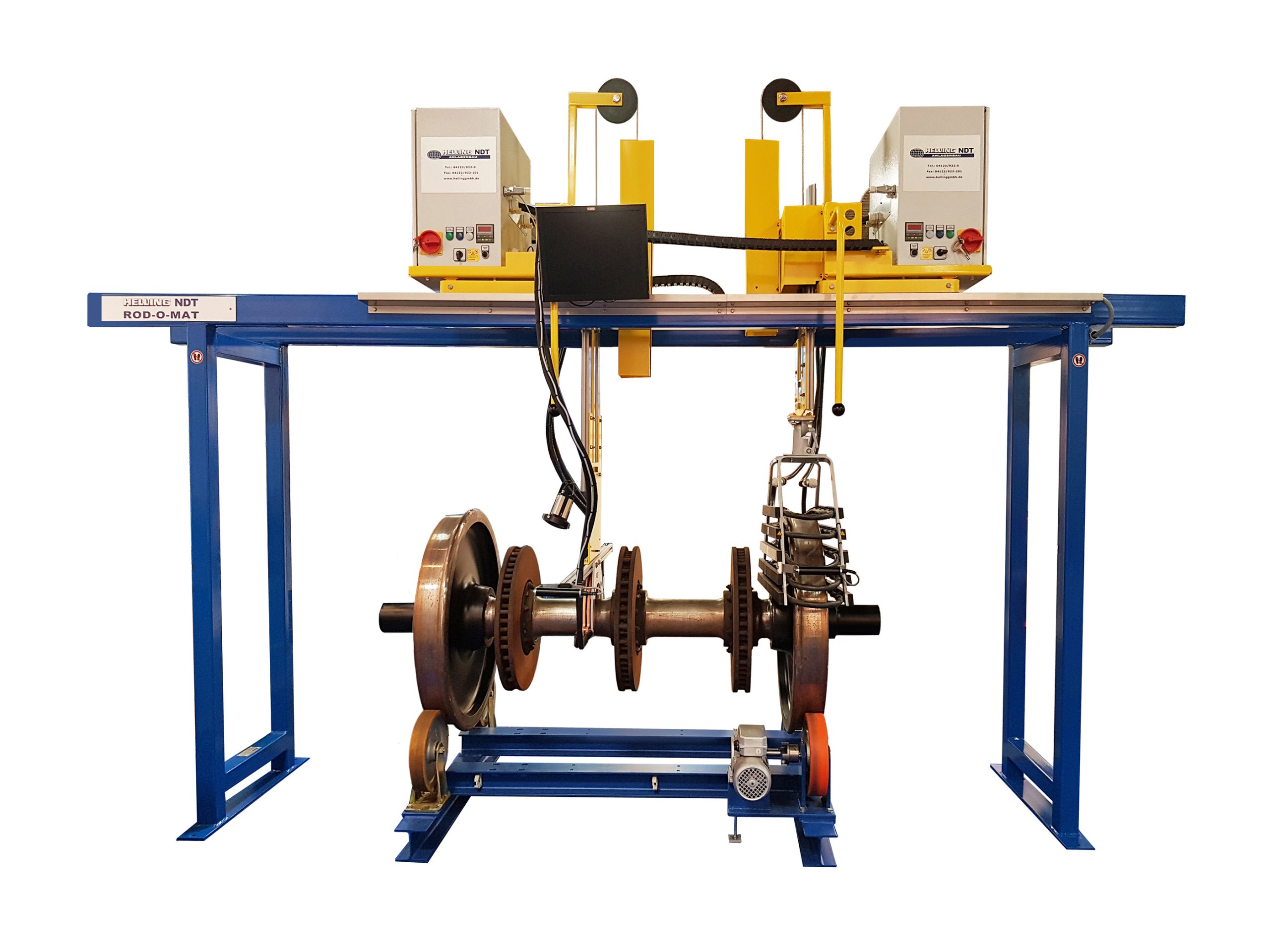

Railway wheel set inspection system, ROD-O-MAT

Specification

• Technical Description: • Steel frame with 2 manually movable carriages
  • Frame with base plates screwed to foundation
  • Double-roller linear axis for adjusting the height of the magnetization coil
  • 1 trapezoidal coil with handle and push button for magnetizing railway wheels Ø 800 to 1200 mm
  diameter (can be tilted forwards)

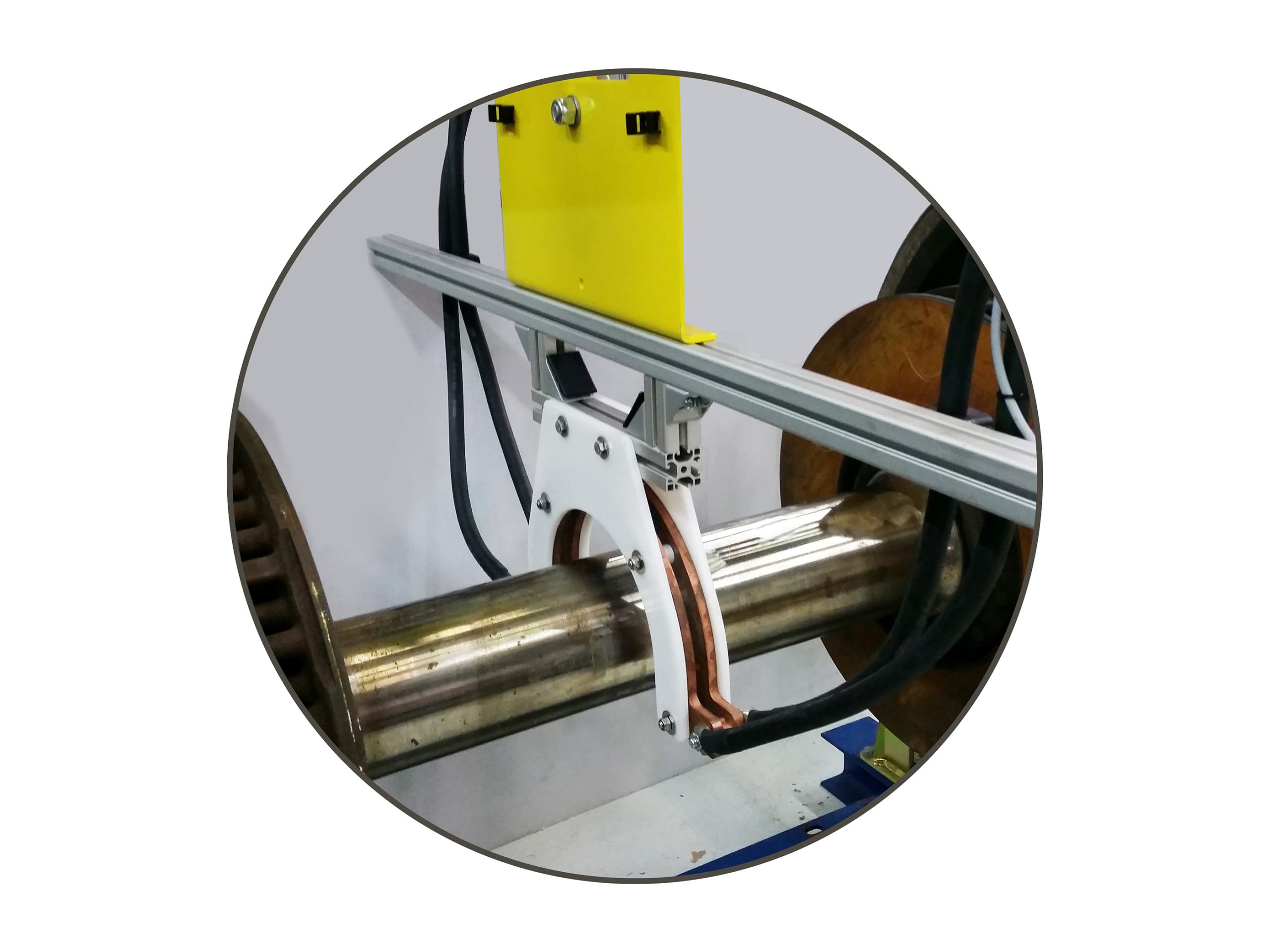

  • 1 segment coil with handle and push button for magnetization of railway axles up to Ø 250 mm
  • Two control cabinets containing high current transformers and control panels:
  - Hellmag 7k: 400 V; 60% relative duty cycle; for trapezoidal coil
  - Hellmag 15k: 400 V; 60% relative duty cycle; for segment coil
  • with distance monitoring to the test piece (visual display) - optionally
  • Mechanical clamping of the height adjustment
