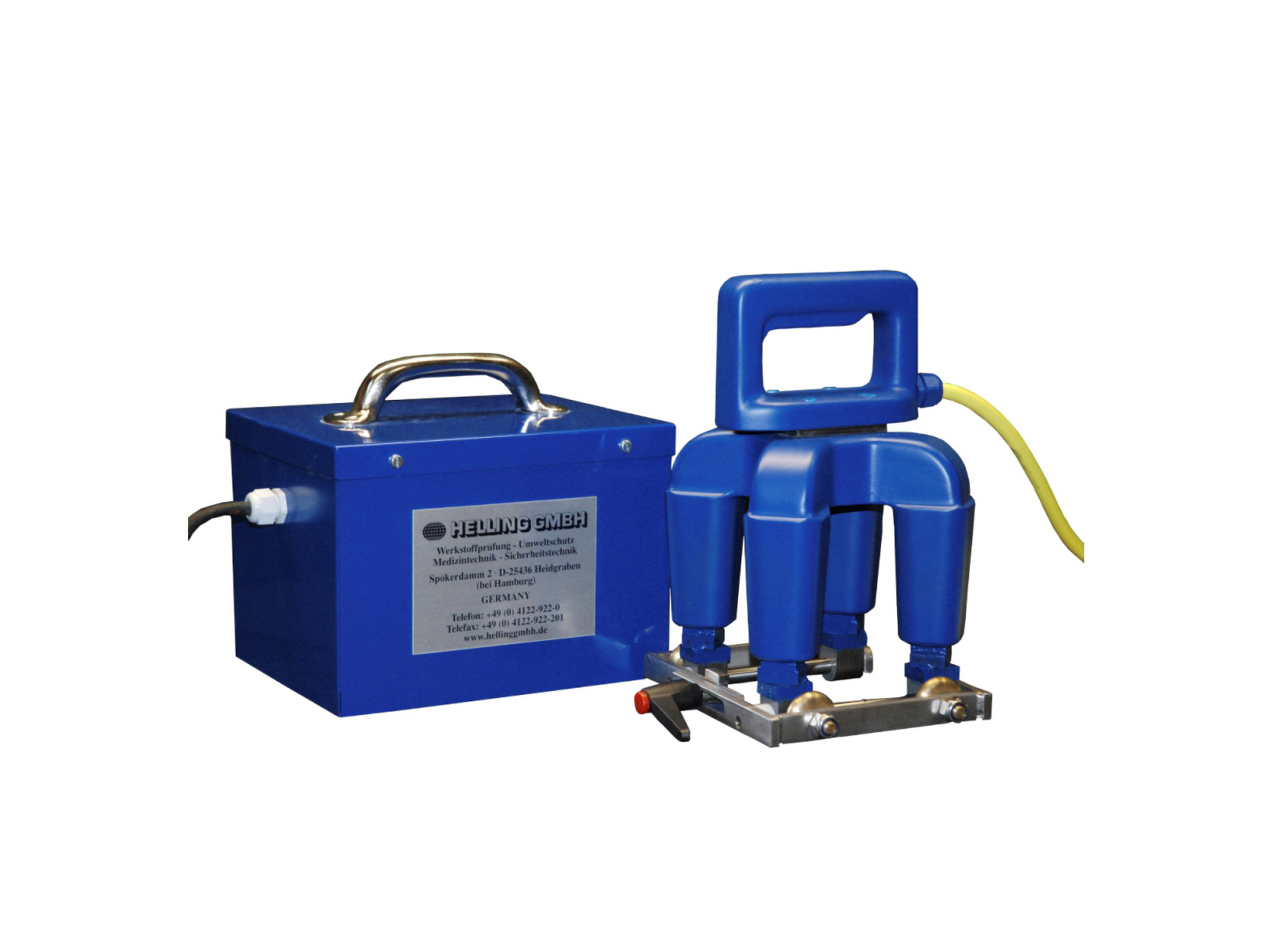

Handmagnetising tool, Cross Yoke KMU 8/42
Ask for a price
Ask for a price
Handmagnetising tool, Cross Yoke KMU 8/42
Specification
- Poles distance: 170 x 170 mm
- Pole cross-section: 25 x 25 mm
- Tangential field strength: 32 A/cm
- Lifting force: > 300 N
Description
Handmagnetising tool, Cross Yoke KMU 8/42 – for the simultaneous recognition of along and traverse errors. Electrical connecting: 2 x 42 V, 2 x 13A, Frequency: 50 Hz
The magnet is also equipped beside the poles attached, adjustable impellers. Thus easy shifting on the test sample is possible with at the same time constant air gap between test Sample surface and the yoke.
