DF800S Digital Gauge
Specification
- Measuring ranges: 5, 12 mm
- Resolution: 0.1 µm
- Precision: 1 µm
- Response speed: max. 80 m/min
- Lifespan: min. 320.000.000 measuring cycles
- Cable length: 2 m
Downloads
Description

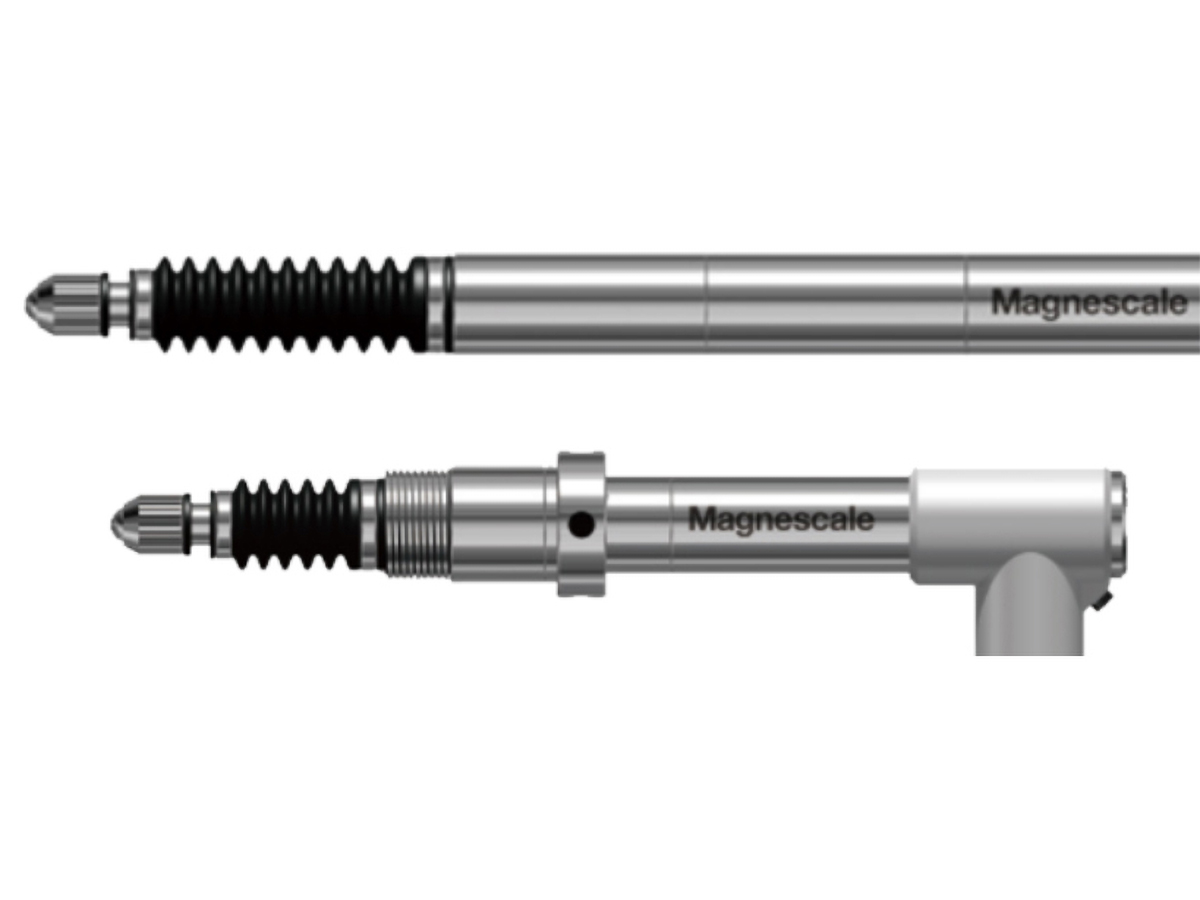

DF800S Digital Gauge
Slim shape with stem diameter of Φ8 mm and high durability ball spline bearing.
By combining with CE34, MF10, and MG50 series (sold separately), it can be compactly connected to PLCs and other control devices.
Features:
- Measuring range: 5 mm, 12 mm, 30 mm (made to Order)
- Maximum resolution: 0.1 µm
- Accuracy: 1 µm p-p to 1.7 µm p-p (depends on the measurement range and resolution)
- Maximum response speed: 80 m/min
- Bearing structure: Improved sliding performance through the use of highly durable ball spline bearings
- High durability: 320 million sliding cycles or more (under continuous evaluation as of January 2021)
- Protection grade: IP67 (with air connected on right angle models)
- Built-in reference point
- Flange type is also available for strong fixing.
