Portable Roughness Measurement System DH-8, Diavite
Ask for a priceSpecification
-
Measuring range:
Ra, Rq: 0 - 20 µm
Rz, Ry, Rp, Rt, R3z: 0 - 350 µm -
Resolution:
Ra, Rq: 0.001 µm
Rz, Ry, Rp, Rt, R3z: 0.01 µm - Parameters: Ra, Rz, Rmax, R3z, Rt, Rq, Rk, Rp, Rv, Rpk, Rvk, MR1, MR2, Rpc, C1, C2
- Memory: internal, USB connection
Description

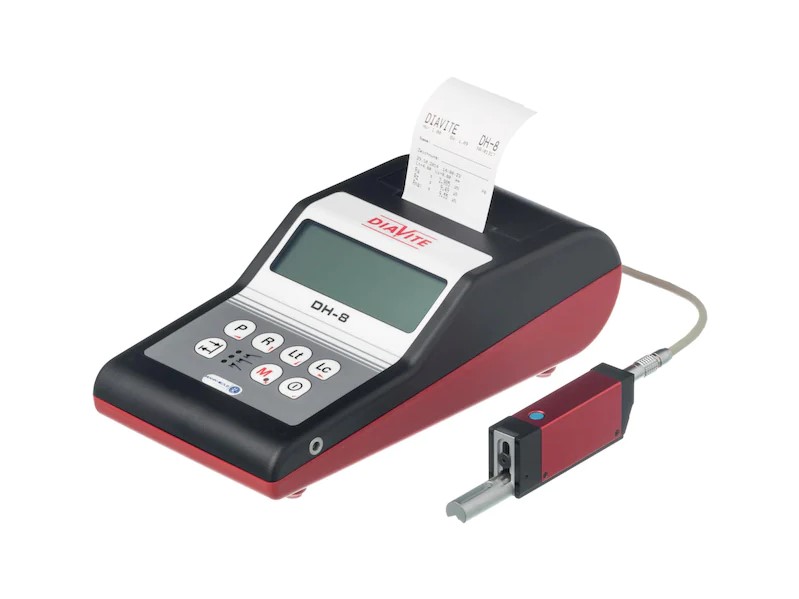

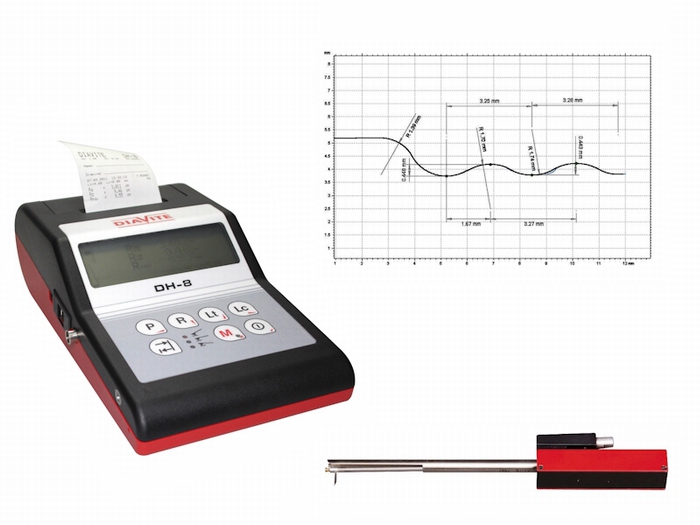

Portable Roughness Measurement System DH-8
Universal use in workshop and inspection room, integral thermo printer for all measuring values, profile and bearing ratio. Automatic print out after each measurement possible. Memory for measurements. Choice of many types of tracers to realize more measuring tasks. User friendly comprehensive multilingual menu guidance. Tolerance indication for exceeded limits of measuring values. From the simple roughness measurement without accessories, directly on the machine, over measurements in the laboratory with measuring support, special tracers and further accessories, up to the recording of contours, the DIAVITE DH-8 and COMPACT II offers the maximum of flexibility allowing judging the quality of surfaces.
