Portable Surface Roughness Tester TIME 3200
Ask for a priceSpecification
-
Measuring Range:
Ra, Rq: 0.005 - 16 µm
Rz, Ry, Rp, Rt, R3z: 0,02 - 160 µm
RSm, RS: 2 - 4.000 µm - Resolution: 0.001 μm
- Parameters: Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr
- Battery: Li-Ion, 1000 mAh
- Dimensions: 140 x 52 x 48 mm
- Weight: 440 g
Description
Portable Surface Roughness Tester TIME 3200 – is a cost-effective roughness measuring equipment which supports a dozen of parameters. It is small and light with better accuracy. TIME®3200/3202 can be equipped with several optional pickup for different applications. Well suited for on-site roughness testing.
Features
● Over dozen measurement parameters applicable for roughness test of various mechanical manufacturing processes in production lines, workshops and labs.

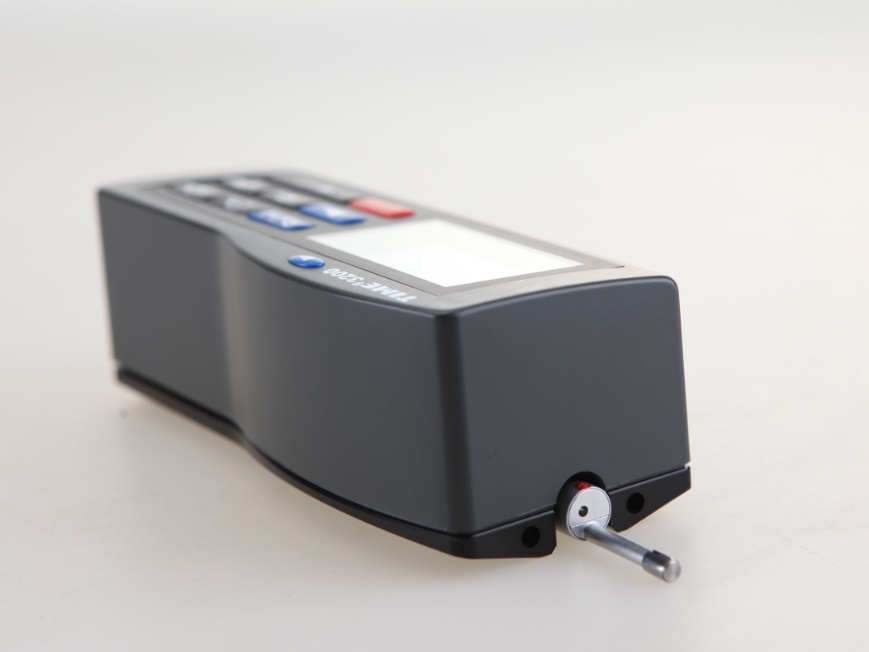

● High accuracy inductive pickup

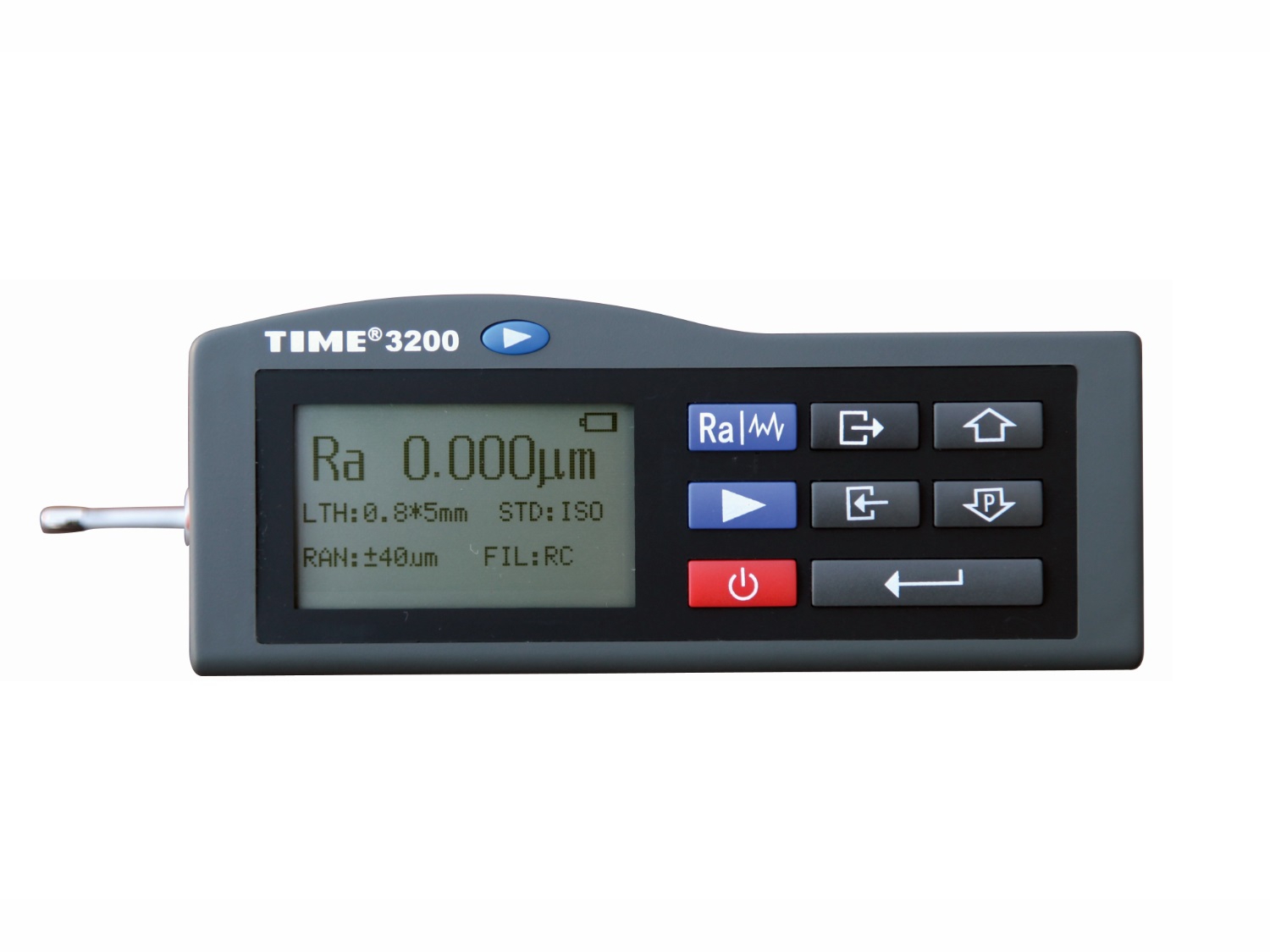

● Easy operation manual and large LCD display with backlight.
● Pickup stylus position indicator.

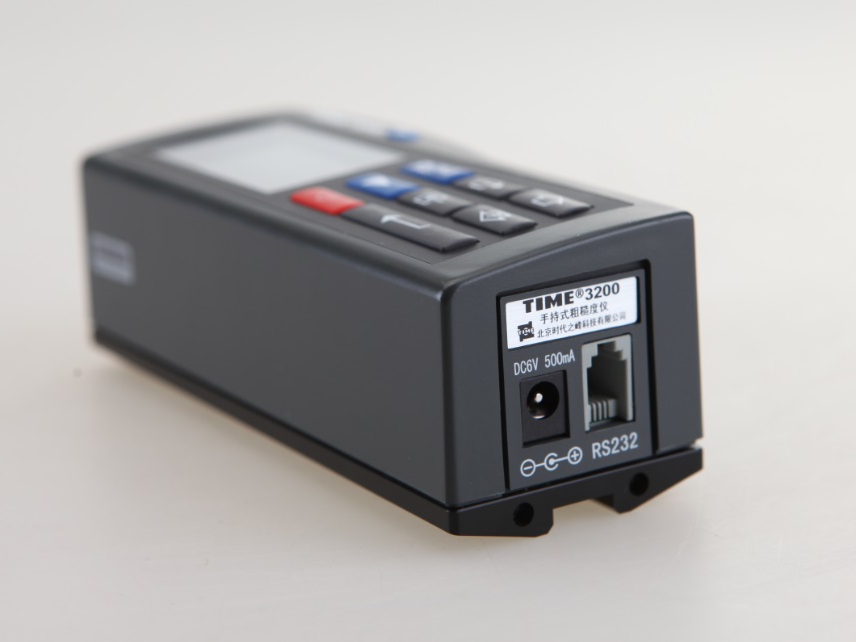

● Transfer to PC via RS232 with advanced PC Software TIMESurf for more analyzing management.
● Connected with printer to print the data and graphs on-site.
● Storage and review function for up to 15 groups data and graphs.
● Rk data and graphic are available.
● Digital filter: RC, PC-RC, Gauss, D-P
● Optional delicate accessories for more accurate results and easier operation eg. measuring platform, steel support and so on
● Conform to ISO standard, compatible with DIN, ANSI and JIS standard.
● Top quality Li-ion rechargeable battery.
