HELLCHAIN 1400 Chain Testing system
Ask for a price
Ask for a price
HELLCHAIN 1400 Chain Testing system
Specification
-
System Configuration:
- 4-wheel trolley
- Collection container with integrated spraying unit
- Pump for high power test environments
- Closed magnet coil mounted on the collection container
- High power current generator with switch
Description

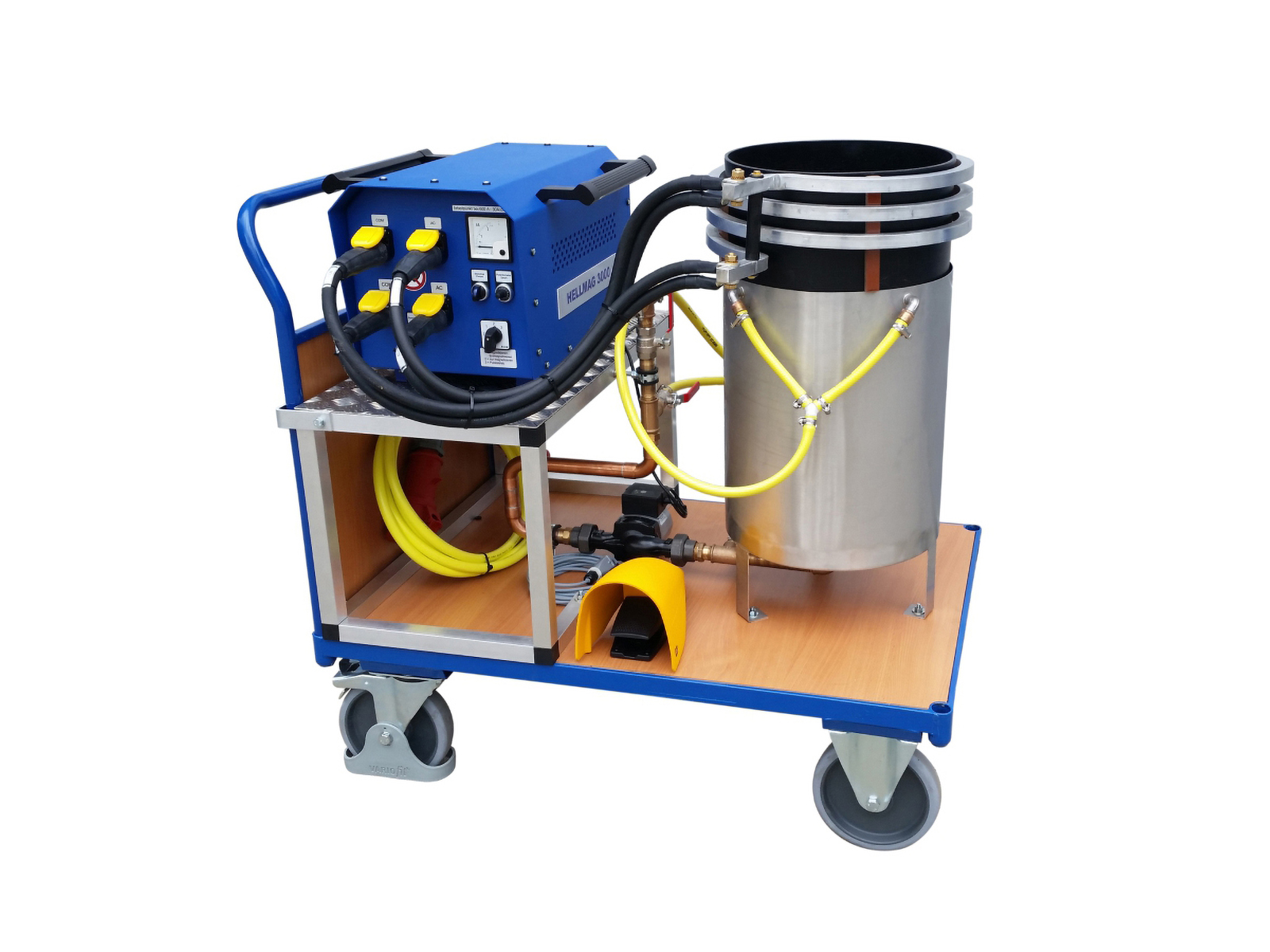

HELLCHAIN 1400 Chain Testing system – Mobile testing system according to UVV 18.4 / DIN 685 part 5 consisting of:
– Transport car designed for HELLMAG 3000 installation
– Magnetic particle suspension collecting tank with integrated showering arrangement
– High-power pump for magnetic particle suspension
– Closed magnetizing coil 350 mm mounted at the suspension-collecting tank
– HELLMAG 3000 heavy current generator
– 2 sets (4 pcs.) connecting cables 70 mm²
– Foot switch for HELLMAG 3000 operation
– UV-Inspector 711 UV LED hand lamp.
