Eddy Current Robotic System ELOSCAN

Eddy Current Robotic System ELOSCAN

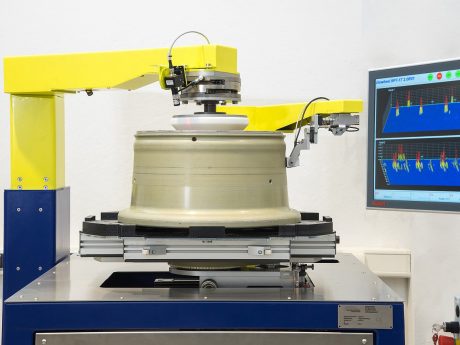

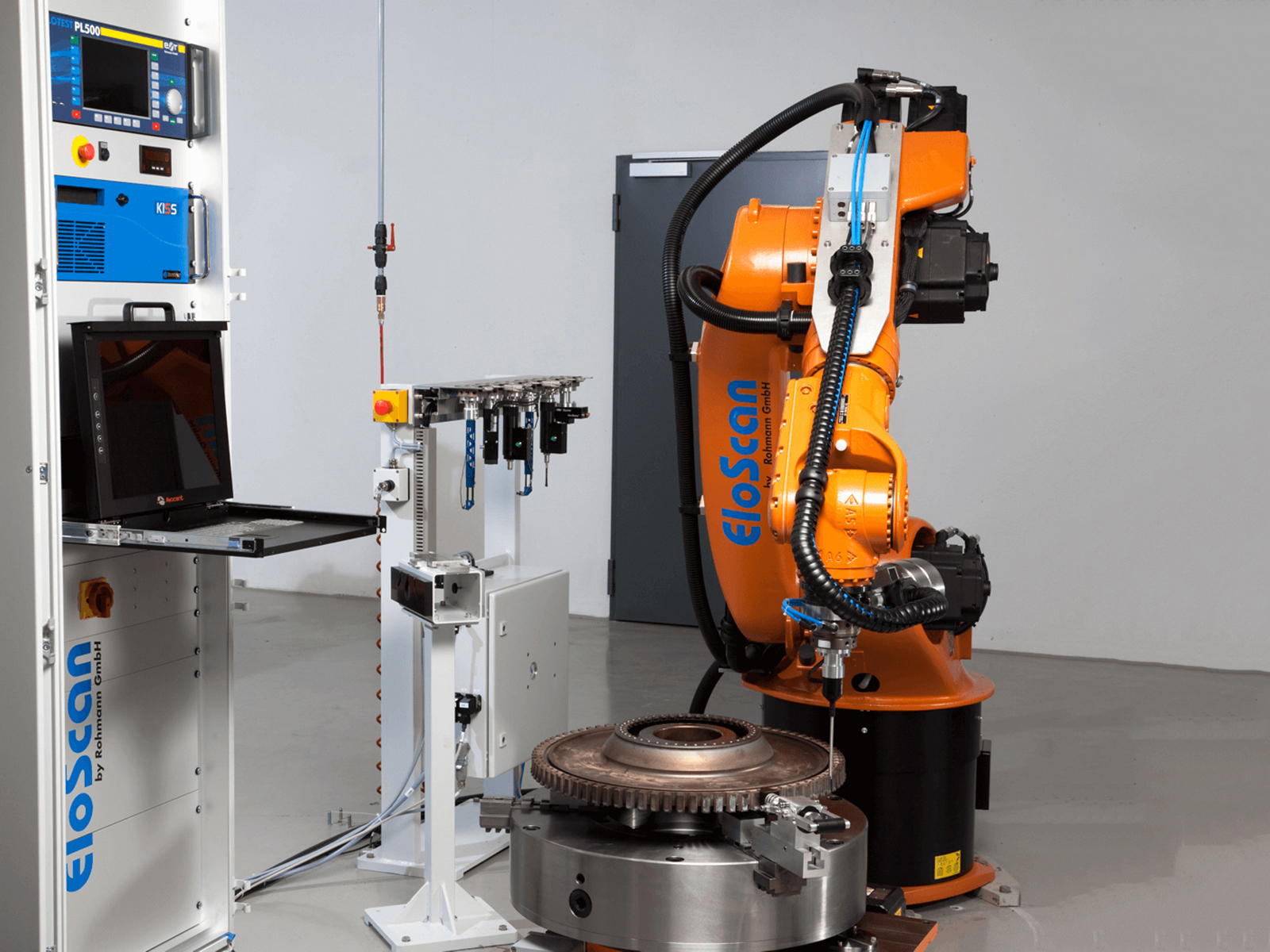

The automated EloScan eddy current inspection system has been primarily designed for the inspection of rotating
symmetric components of aircraft engines. Because of its universal design, it can also be used for the inspection of
other complex components where the probe must be guided precisely along or inside the part.

The system has been designed with user-friendliness in mind and can be set up for a different inspection within just a few minutes. The operator can easily call up and carry out recurrent inspection jobs. The storage and evaluation of the measuring data as well the calibration with a reference standard can be accomplished fully automatic.

The ScanAlyzer software lets the user evaluate, analyze and document the measuring results. For these purposes, the software offer various tools such as offline filter, offline phase rotation or offline gain. It is also possible to integrate customized ”mathematical” filters. The software is based on the new ”layer technology” that lets the user acquire and evaluate the data of up to 128 measuring channels simultaneously. The individual layers can be offset against each other and the result can be displayed as a C-scan online during the inspection. Windows NT Workstation or Windows 2000/XP provides the powerful operating system.
