Portable Analyzer LIBS Z-901
Ask for a priceSpecification
- Technology: Laser
- Purging: Argon
- Video Camera: Dual Camera
- Spectral range: 200 - 420 nm
-
Calibrated material\alloy types:
Aluminum: Be, Mg, Al, Si, Ti, V, Cr, Mn, Fe, Ni, Cu, Zn, Zr, Pb, Bi, Ag, Sn
Titan: Al, Ti, V, Cr, Fe, Cu, Zr, Nb, Mo, Sn
Low alloy steels: Al, Si, Ti, V, Cr, Mn, Fe, Cu, Ni, Nb, Mo, Pb
Stainless steels: Al, Si, Ti, V, Cr, Mn, Ni, Fe, Ni, Cu, Nb, Mo, W
Nickel: Al, Si, Ti, Cr, Mn, Fe, Co, Ni, Cu, Nb, Mo, W
Copper: Be, Al, Si, Cr, Mn, Fe, Ni, Cu, Zn, Ag, Sn, Pb, Bi
Cobalt: Al, Si, Ti, Cr, Mn, Fe, Co, Ni, Cu, Nb, Mo, W - Weight: 1.97 kg
- Operating system: Android
- Dimensions: 27 x 7 x 21 cm
- Display: 2.7" high-resolution color touchscreen
- PC software: SciAps Profile Builder
Downloads
Description

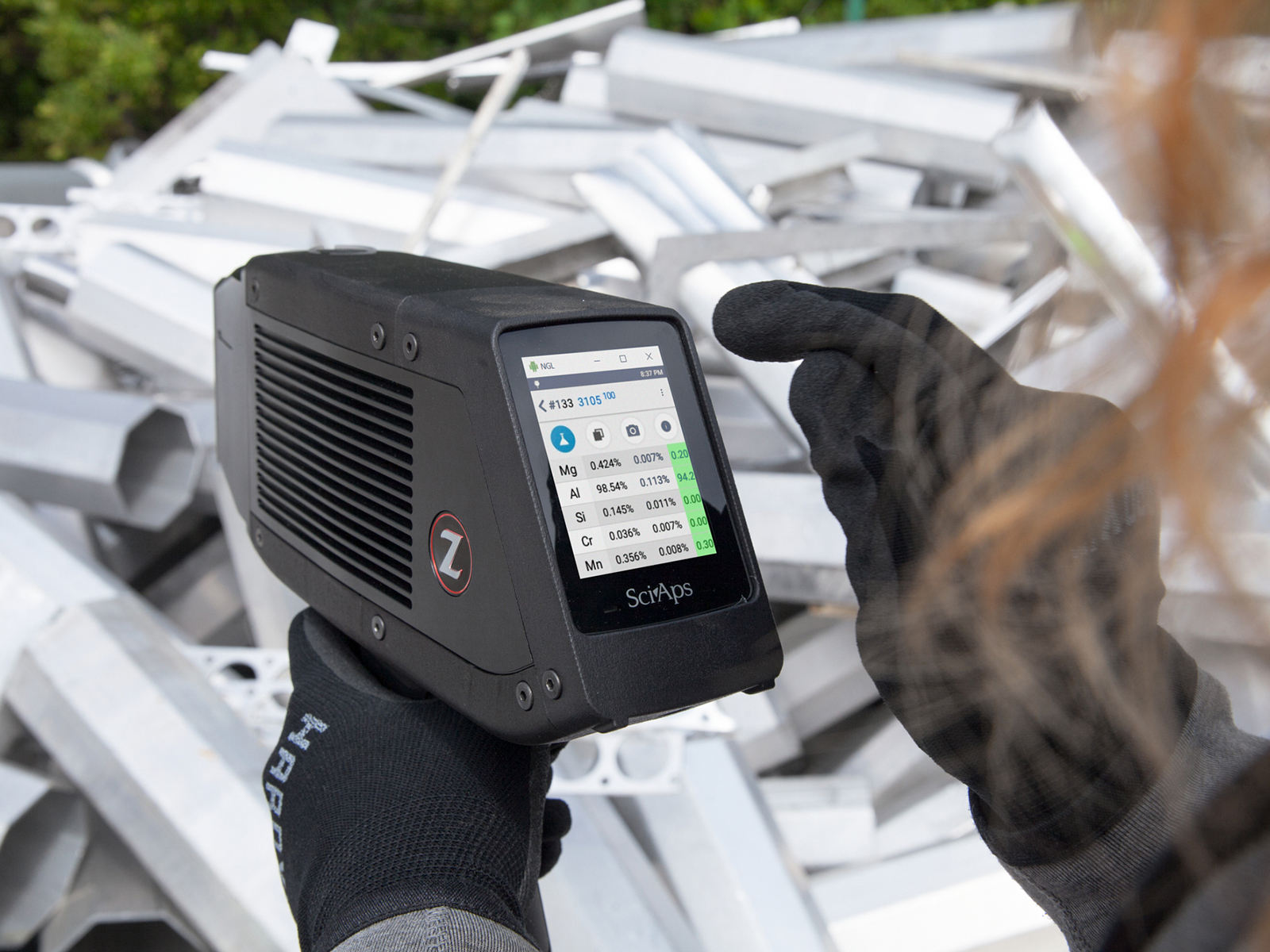

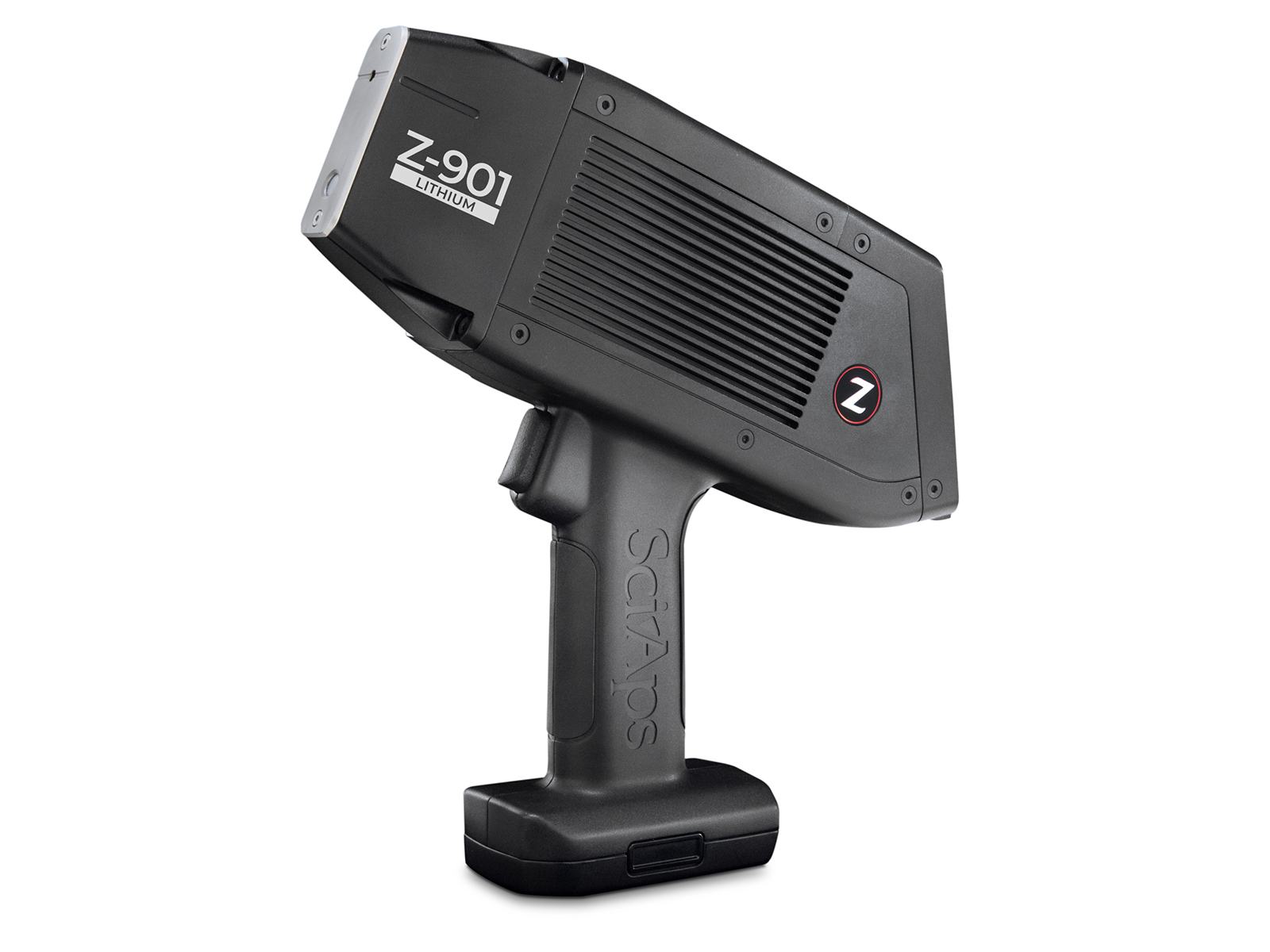

Portable Analyzer LIBS Z-901
The Z-901 features an all-new ergonomic design, a 0.5 lb. weight reduction down to about 3.5 lbs. (1.6 kg), improved heat dissipation, and completely updated software and processing electronics.
The Z-901 also leads the way featuring the first-ever “dual burn” technology. Users can test with the 901 either using an “air burn” method or using argon-purge for applications requiring higher precision and lower limits of detection.
A single spectrometer to covers the wavelength range of 200 – 440 nm. The instrument is factory calibrated for a suite of 15-20 elements, depending on application. Or operators may use the accompanying Profile Builder software package to customize to specific elements, their own calibration standards, and spectral processing. The Z-901 can be set up to measure the emissions of any element except Li, Na, H, C, N, O, Cl, Br, F, Ce, Rb, S. Common factory-calibrated Z-901 applications include alloy, mining and environmental analysis, typically for beryllium in soil.
