Crack test bench, Hellmag Universal
Specification

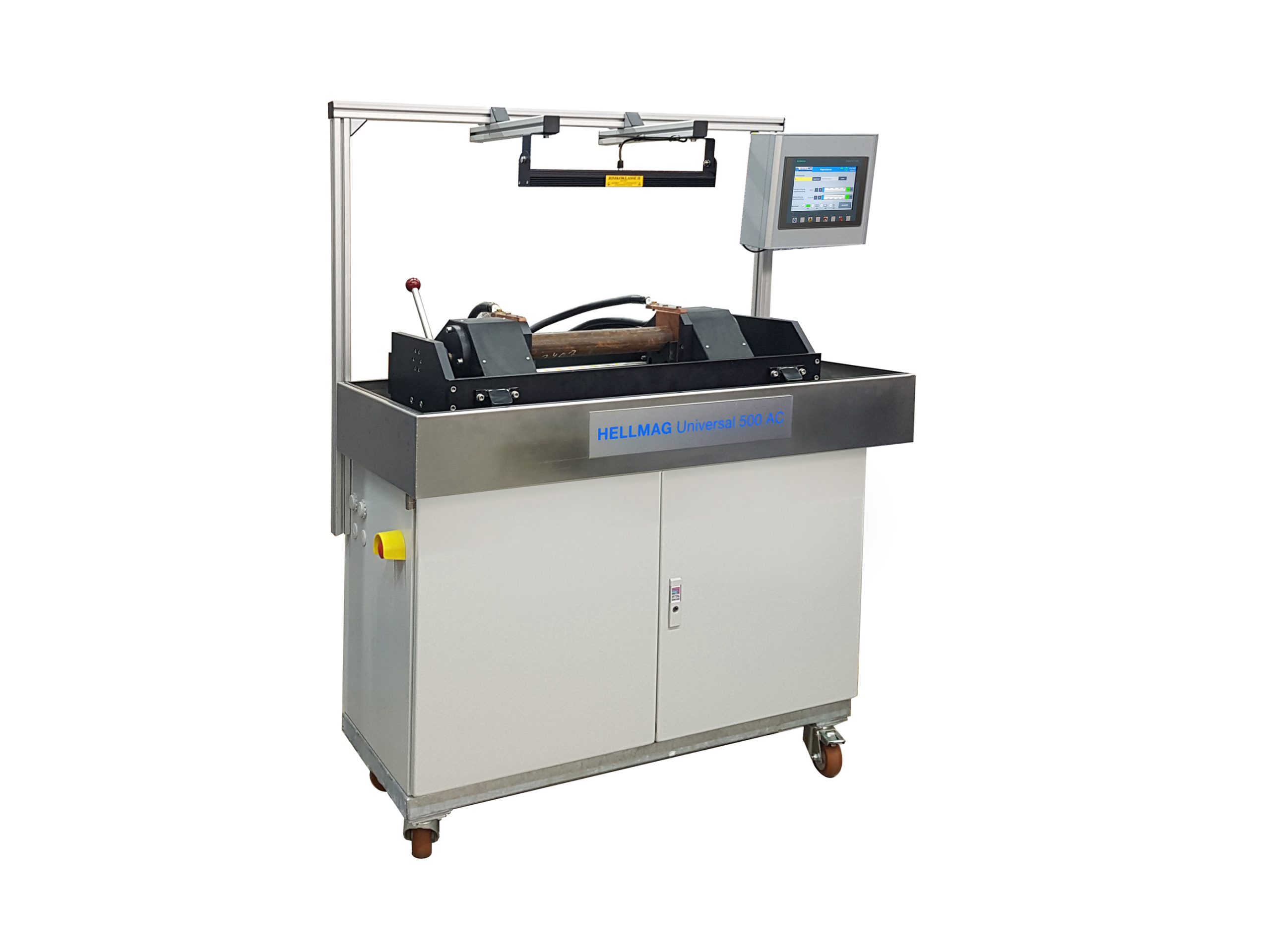

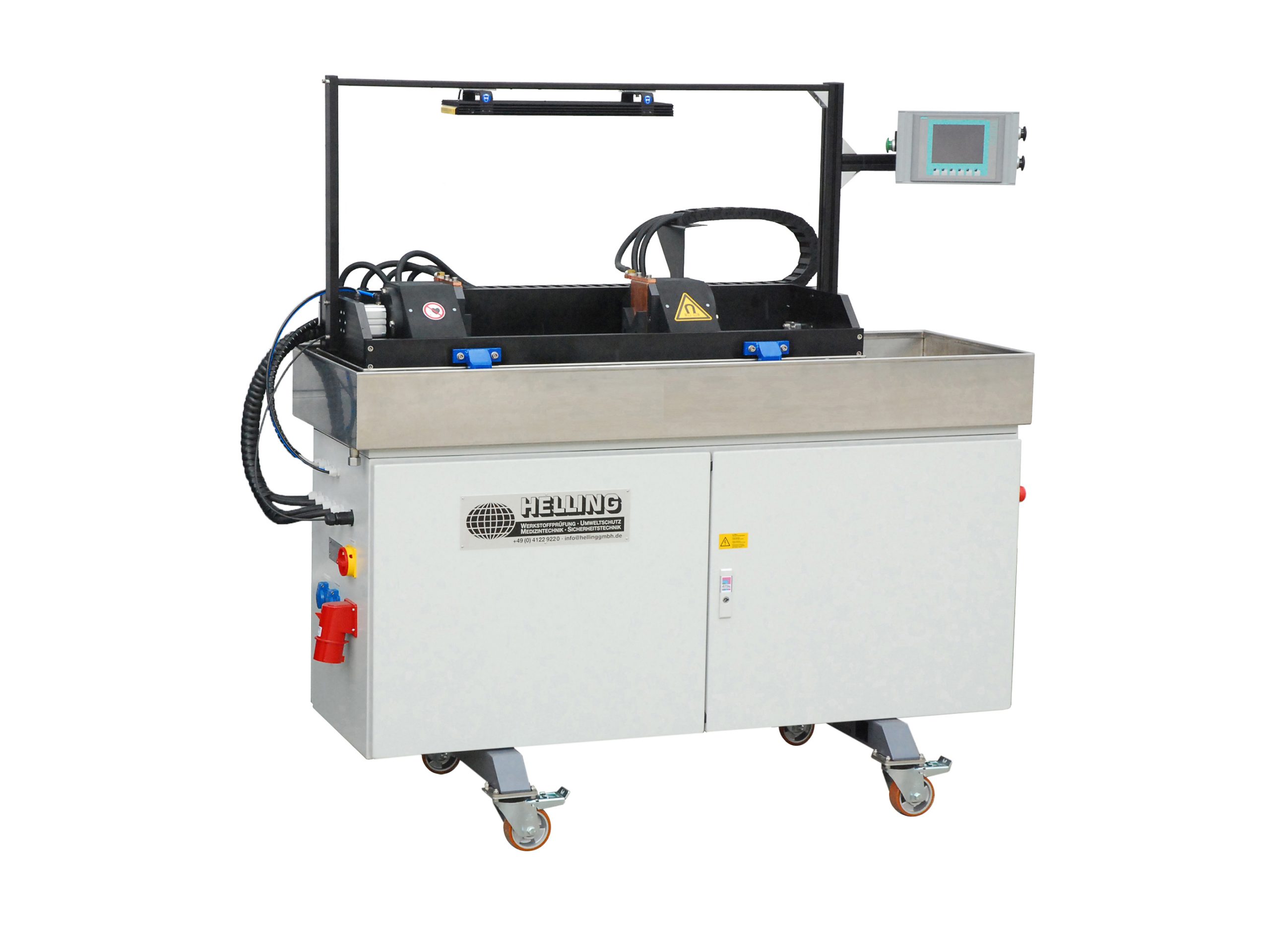

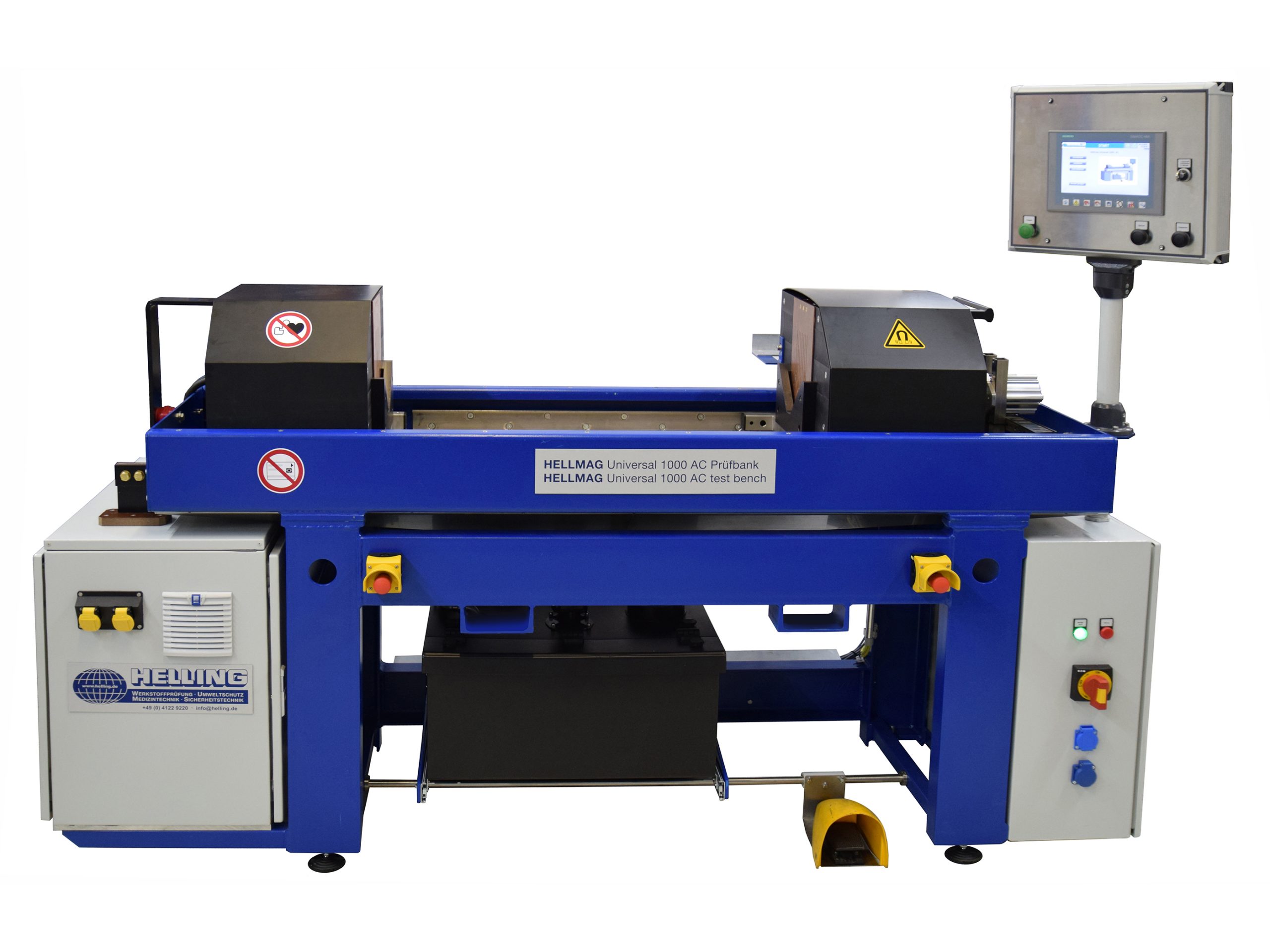

- Available configurations: Hellmag 500 AC / Hellmag 700 AC / Hellmag 1000 AC
- Test piece max. length: 60 - 500 mm / 60 - 700 mm / 150 - 1000 mm
- Magnetisation: 12000 AT / 12000 AT / 20000 AT
- Mains connection: 400 V / 50 Hz
- Power: 18 kVA / 28 kVA / 55 kVA
- Tangential field strength: 30 A/cm2
Description
Crack test bench, Hellmag Universal – is designed for testing short-run batches and for training purposes.
Two single connectible magnetising circuits.
AC current flow magnetisation
AC yoke magnetisation
Operation via Siemens “KTP 600” multi-colour touch panel.
Equipped with a powerful UV LED area lamp.
Test piece current settings can be storaged, possibly protected by password.
